MAXIM INTEGRATED / ANALOG DEVICES DG508AEWET Analog Multiplexer

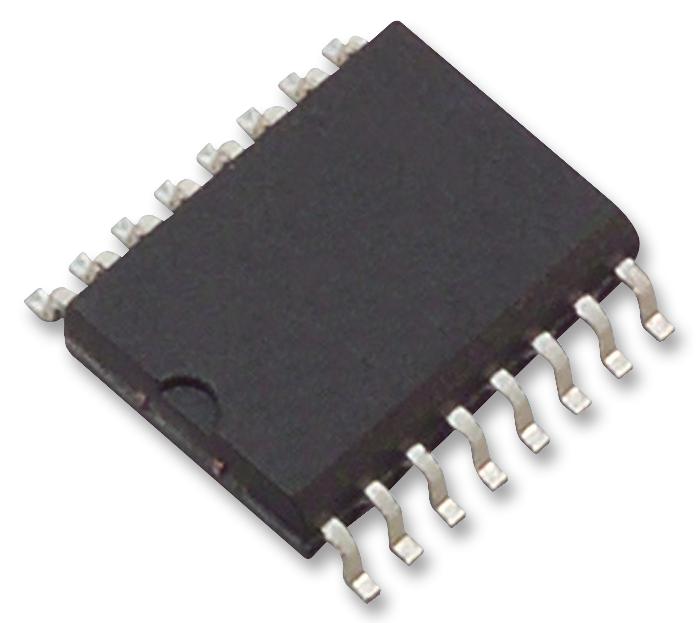

The DG508AEWE+T from Maxim Integrated Products is a monolithic CMOS analog multiplexer housed in a 16-pin WSOIC package. It features an 8-channel (1 of 8) configuration that does not latch-up when the power supply is turned off while input signals are present. The device offers faster enable switching times, significantly lower leakage currents, and reduced power consumption, making it suitable for portable equipment. Its applications include control systems, data logging, aircraft heads-up displays, data acquisition, and signal routing. The device operates within a supply voltage range of ±4.5V to ±18V, with an operating temperature range from -40°C to 85°C. It supports break-before-make switching, improved second-source availability, and is compatible with TTL and CMOS logic and enable inputs. Designed with a low-power CMOS architecture, it handles analog signals from -15V to +15V, offering symmetrical, bidirectional operation. It also serves as a plug-in upgrade for the industry-standard DG508A.

View DG508AEWETDatasheet [pdf]

Buy the Maxim Series DG508A Digital Multiplexer: DG508AEWET

Order the Maxim series DG508AEWET online today to benefit from its enhanced performance features like faster switching times, low leakage currents, and broad supply voltage compatibility. This 8-channel CMOS analog multiplexer is ideal for control, data logging, and signal routing applications. With a temperature range from -40°C to 85°C, it ensures reliable operation in various environments. Its low power design and compatibility with TTL and CMOS logic make it perfect for portable and industrial applications. Buy now and upgrade your system with proven high-performance technology.

Buy Maxim CMOS analog multiplexer DG508AEWET now and experience unmatched reliability, low power, and high-speed bidirectional switching for your control and measurement systems.
