MAXIM INTEGRATED / ANALOG DEVICES MAX1714AEEP High-Speed Buck Controller
The MAX1714 buck controller is designed for low-voltage power supplies in notebook computers, offering high efficiency, accurate regulation, and fast transient response. Features include Quick-PWM architecture for handling load steps, a wide input voltage range, adjustable output from 1V to 5.5V, selectable frequency up to 600kHz, and overvoltage protection in the MAX1714A variant. Its innovative constant-on-time PWM control handles wide voltage ratios, drives large MOSFETs, and is ideal for CPU core, DRAM, and chipset supplies, ensuring stable operation with minimal external components.
MAXIM INTEGRATED / ANALOG DEVICES MAX1714AEEP High-Speed Buck Controller Specifications:
- Input Voltage Range: 2V to 28V
- Output Voltage Range: 1V to 5.5V adjustable
- Switching Frequency: 200kHz, 300kHz, 450kHz, 600kHz options
- Output Voltage Accuracy: ±1%
- Peak Load Current: Up to 8A
- Soft-Start Time: 1.7ms
- Overvoltage Protection (MAX1714A): Yes
- Undervoltage Lockout Threshold: 4.2V
- Gate Drivers: DH and DL with low ON-resistance
- Power-Good Indicator: Open-drain output, in regulation threshold 6%
- Expansive transient response, handles load steps within 100ns
- Package Options: 16 QSOP (MAX1714B), 20 QSOP (MAX1714A)

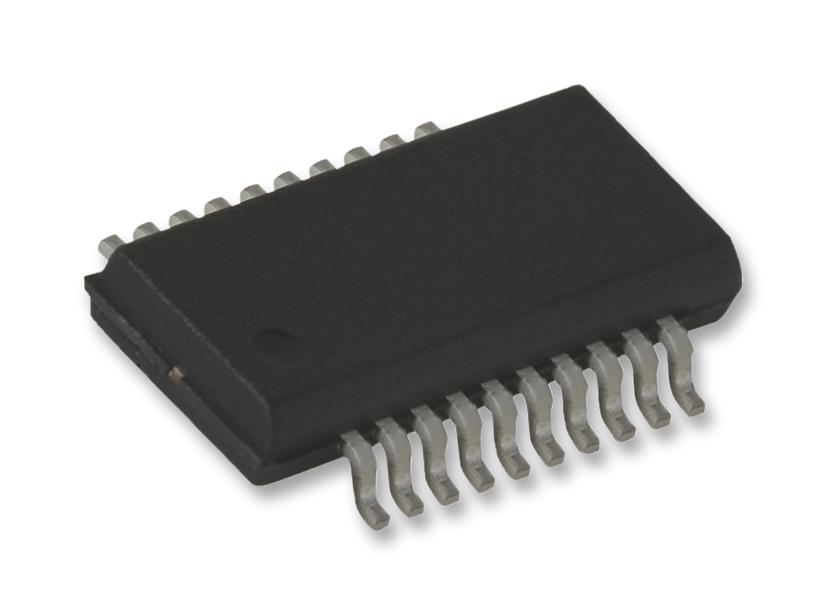

Buy the Maxim MAX1714A – Reliable High-Speed Buck Controller for Notebook Power Supplies
Enhance your project with the Maxim MAX1714A buck regulator, offering precise voltage regulation from 1V to 5.5V, high efficiency, and fast load transient response ideal for notebook and low-voltage applications. Its proprietary Quick-PWM architecture manages wide input voltage ratios effectively, achieving stable output with minimal external components. Available in compact QSOP packages, the MAX1714A provides robust overvoltage protection, excellent thermal performance, and a soft-start feature, making it the perfect choice for high-performance, space-constrained power supplies. Order online now for quick delivery.
Order your Maxim MAX1714A buck controller today and ensure your notebook's power regulation is fast, efficient, and highly reliable for demanding applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX1714AEEP?
You can click on the BUY or RFQ button to purchase MAX1714AEEP from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX1714AEEP?
You can download the MAX1714AEEP datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX1714AEEP?
MAXIM INTEGRATED / ANALOG DEVICES
