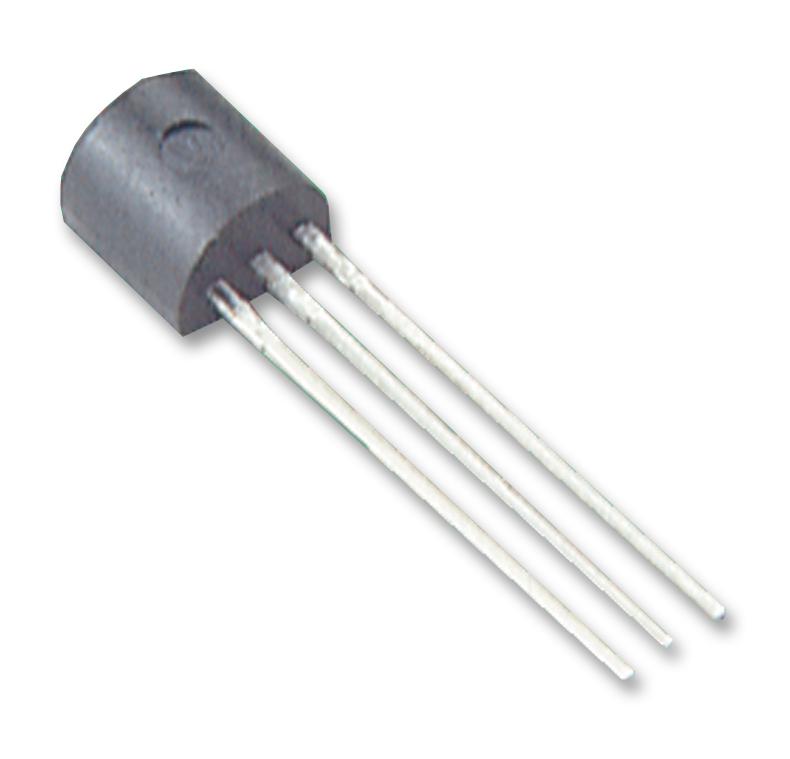

MAXIM INTEGRATED / ANALOG DEVICES DS12335 Power Reset Controller
The DS1233 EconoReset monitors power supply and external override for microprocessors, providing reliable reset signals during power fluctuations and button presses. It features precision temperature-compensated references, debounce circuitry, and configurable trip points for Vcc detection at 5%, 10%, or 15%. Its compact packages include TO-92 and SOT-223, operating from -40°C to +85°C. The device ensures stable microprocessor resets after power-up, power-down, or external pushbutton activation, reducing component count and enhancing system stability with a 350ms reset delay.
MAXIM INTEGRATED / ANALOG DEVICES DS12335 Power Reset Controller Specifications:
- Supply Voltage: 1.2V to 5.5V
- Reset Active Time: 250ms to 450ms (typical 350ms)
- Vcc Trip Point: 4.50V (5%), 4.25V (10%), 4.125V (15%) depending on variant
- Pushbutton Detect Voltage: 1.8V to 3.3V
- Internal Pull-Up Resistor: 3.75kΩ to 6.25kΩ
- Operating Temperature Range: -40°C to +85°C
- Peak Soldering Temperature: 260°C for 10 seconds
- Output Capacitance: 10pF
- Input Low Level: 0.4V
- Analog Reference: Temperature-Compensated Voltage
- Capacitor for Pushbutton: 100pF to 0.01μF recommended
- Power Monitoring Accuracy: ±5%, ±10%, or ±15% depending on calibration
- Package Types: TO-92, SOT-223
Buy the Microchip Series DS1233 Power Reset: DS12335
Secure your microprocessor system’s stability with the DS12335 Power Reset Controller. Featuring precise power failure detection, external pushbutton override, and a reliable 350ms reset delay, this device is ideal for applications requiring consistent startup and shutdown procedures. Its compact design in TO-92 or SOT-223 packages, operating across -40°C to +85°C, simplifies integration into diverse systems. Purchase online today to enhance your project’s robustness with a cost-effective, dependable reset solution.
Order your Microchip Series DS12335 reset controller today and ensure your microprocessor systems operate reliably with precise power monitoring and external reset logic.
