MAXIM INTEGRATED / ANALOG DEVICES DS1267BS050 Digital Potentiometer

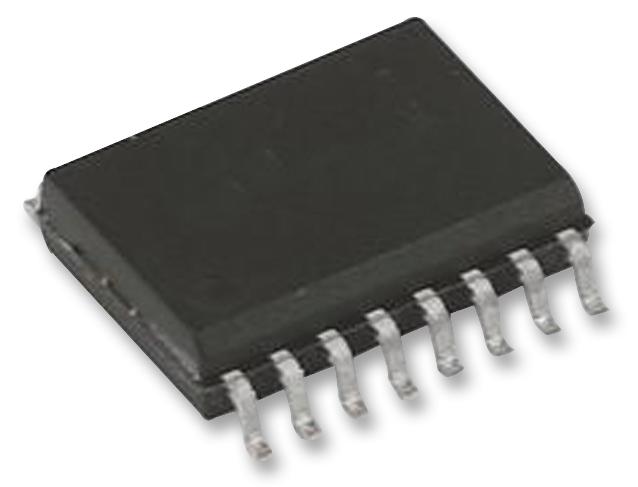

The DS1267BS-050+ is a dual digital potentiometer housed in a 16-pin WSOIC package. It features two solid-state, electronically controlled potentiometers, each with 256 resistive segments connected between two endpoints. The position of each wiper can be adjusted via an 8-bit control word, which determines the tapped resistive point connected to the wiper terminal. Communication and control are facilitated through a 3-wire serial interface, enabling reading and writing of the wiper positions. It operates from 4.5V to 5.5V, withstands -40°C to 85°C, offers 50kΩ resistance with ±20% tolerance, and linearity of ±0.3LSB. Maximum clock frequency is 3.5MHz, suitable for signal processing and automation applications.
MAXIM INTEGRATED / ANALOG DEVICES DS1267BS050 Digital Potentiometer Specifications:
- Package: 16-pin WSOIC
- Resistance: 50kΩ ±20% tolerance
- Number of steps per potentiometer: 256
- Operating Voltage: 4.5V to 5.5V
- Temperature Range: -40°C to +85°C
- Maximum Clock Frequency: 3.5MHz
- Linearity: ±0.3LSB
- Input Capacitance: 5pF
- Output Capacitance: 7pF
- Input Logic Voltage: 0.7 x Vcc to Vcc + 0.5V
- Supply Current: 2.1 to 5mA
- End-to-End Resistance Tolerance: ±20%
- Soldering Temperature: 260°C for 10s
Buy the Maxim DS1267BS-050+ – Reliable Dual Digital Potentiometer for Industrial Applications
Enhance your circuits with the Maxim DS1267BS-050+, a dual digital potentiometer designed for precise resistance adjustments. It features two 256-step, solid-state potentiometers in a compact 16-pin WSOIC package, operated via a 3-wire serial interface. With resistance of 50kΩ and linearity of ±0.3LSB, it offers excellent accuracy and stability from -40°C to 85°C. Its maximum clock frequency of 3.5MHz makes it suitable for signal processing, automation, and control applications. Purchase online today to ensure reliable performance in your projects.
Get Maxim DS1267BS-050+ today—built for precision and long-lasting durability in signal control and automation systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES DS1267BS050?
You can click on the BUY or RFQ button to purchase DS1267BS050 from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part DS1267BS050?
You can download the DS1267BS050 datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of DS1267BS050?
MAXIM INTEGRATED / ANALOG DEVICES
