MAXIM INTEGRATED / ANALOG DEVICES MAX335CWGT 8-channel analog switch
The MAX335 is an 8-channel analog switch with a serial digital interface, offering eight individually controlled SPST switches with on-resistance of 100Ω. It operates from +4.5V to +20V power supplies and handles rail-to-rail analog signals. Controlled via a compatible serial interface, it supports daisy chaining for multiple devices. Its applications include data acquisition, signal routing, and avionics. The device's reset clears all switches to off state upon power-up, ensuring reliable operation in industrial and control systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX335CWGT 8-channel analog switch Specifications:
- Number of Switches: 8 SPST switches
- On-Resistance: 100Ω (typical)
- Analog Signal Range: -15V to +15V
- Supply Voltage: +4.5V to +20V
- Control Interface: Serial SPI-compatible
- Operating Temperature: 0°C to +70°C or -40°C to +85°C (model-dependent)
- Leakage Current: <20nA (off state)
- Input Logic Threshold: High ≥1V, Low ≤0.8V
- Power Dissipation: Derived from operating conditions
- Device Reset: Power-up reset disables all switches
- Daisy Chain Capability: Yes, series connection of multiple devices
- Maximum Clock Frequency: 24 MHz
- Data Setup/Hold Time: 200 ns / 0 ns
- Switching Time: 200-400 ns (turn-on/turn-off)

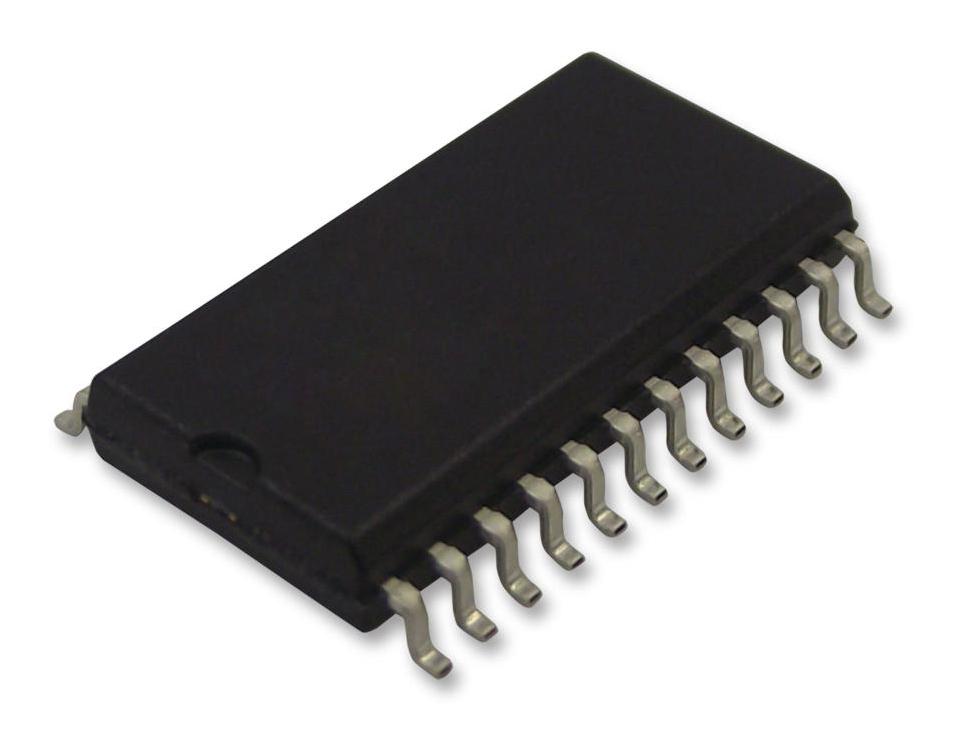

Buy the Maxim MAX335U– Reliable Analog Switch for Industrial Applications
Purchase the MAX335 serial-controlled 8-channel analog switch online today and improve your signal routing and data acquisition systems. This reliable device operates from +4.5V to +20V with low on-resistance of 100Ω, making it ideal for industrial, avionics, and control applications. Its serial SPI interface allows daisy chaining for multiple devices, providing flexibility for complex designs. Reset at power-up ensures stable operation, while its compatibility with TTL levels simplifies system integration. Secure your stock now for high-performance, dependable switching solutions in demanding environments.
Order your Maxim MAX335U today and enhance signal routing with a dependable 8-channel analog switch designed for robust industrial control systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX335CWGT?
You can click on the BUY or RFQ button to purchase MAX335CWGT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX335CWGT?
You can download the MAX335CWGT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX335CWGT?
MAXIM INTEGRATED / ANALOG DEVICES
