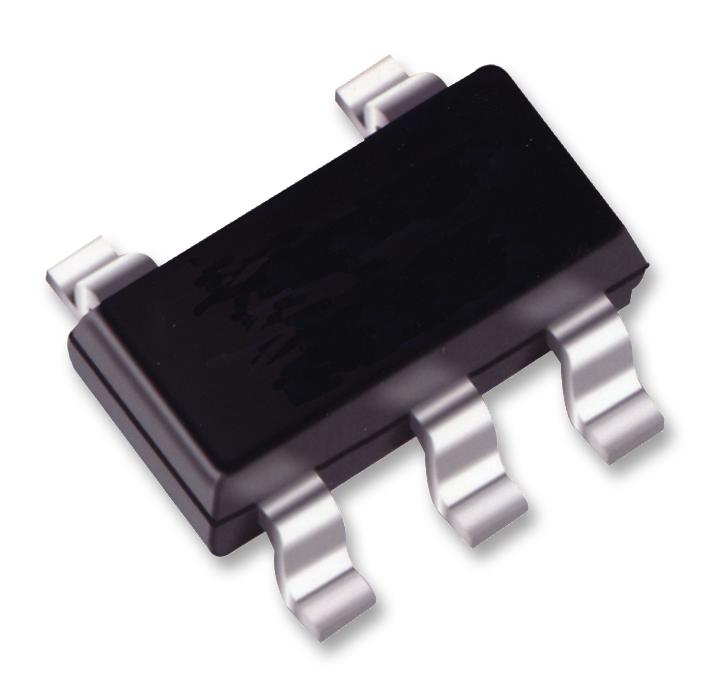

MAXIM INTEGRATED / ANALOG DEVICES DS1814BR5TR Microprocessor Monitor
The DS1814 and DS1819 are microprocessor monitors designed to ensure reliable system operation by supervising power supply, execution, and external override. These devices feature power-fail detection, pushbutton reset, and optional watchdog timer functions, making them suitable for microcontroller-based systems. The DS1814 operates at 5V, while the DS1819 supports 3.3V. They debounce pushbuttons, generate minimum 140ms reset pulses upon power failure or manual reset, and have configurable watchdog timeout of 1.12 seconds. Compact and pin-compatible, they eliminate external components for robust system protection.
MAXIM INTEGRATED / ANALOG DEVICES DS1814BR5TR Microprocessor Monitor Specifications:
- Supply Voltage: 1.0V to 5.5V
- Operating Temperature Range: -40°C to +85°C
- Reset Timing: Minimum 140ms for power failure, 140ms minimum for pushbutton reset
- Power-Fail Detection: Supervised by voltage trip points at 4.50V (DS1814-5), 4.25V (DS1814-10), 3.00V (DS1819-5), 2.85V (DS1819-10), 2.55V (DS1819-20)
- Watchdog Timer: Timeout between 1.12 and 2.40 seconds, can be disabled
- Input Pins: Debounced pushbutton (PBRST), strobe input (ST), active low reset outputs (RST, RST)
- Output Voltage: Capable of sinking current up to 6mA, maintaining valid output down to 1.0V Vcc
- Package: SOT-23-5 with pin configuration for reset, power, and override functions
- Maximum Operating Temperature: 85°C, Storage temperature up to 125°C
Buy the MicroMonitor Series DS1814: VCC Power Supervisor and Reset Controller
Secure your microprocessor-based systems with the DS1814BR5TR MicroMonitor. Featuring power-fail detection, pushbutton reset, and optional watchdog timer, it guarantees system stability during power transients and failures. Compact, pin-compatible, and eliminating external components, it provides reliable detection at 5V and automatic restart after power loss. Its precise voltage trip points and debounce circuitry make it ideal for critical applications requiring dependable power supervision, system reset management, and external override controls. Purchase online today for enhanced system stability and protection.
Order your MicroMonitor DS1814BR5TR today and ensure your systems operate reliably with accurate power supervision and reset capabilities.
