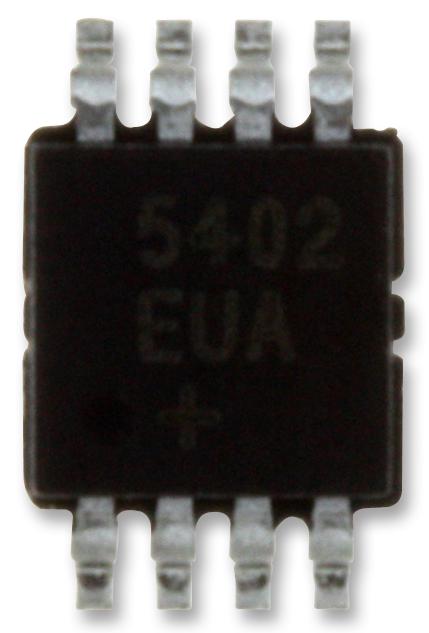

MAXIM INTEGRATED / ANALOG DEVICES MAX1792EUA50 Low-Dropout Linear Regulator
The MAX1792 is a low-dropout, high-accuracy linear regulator designed for battery-powered applications, capable of delivering 500mA with preset or adjustable output voltages from 1.25V to 5.0V. Featuring a P-channel pass transistor, low quiescent current, thermal shutdown, short-circuit protection, and a reset output, it supports portable devices such as smartphones, PDAs, and notebooks. The compact 8-pin Power-uMAX package facilitates easy integration into space-constrained environments, delivering reliable power regulation with low dropout and minimal noise for sensitive electronics.
MAXIM INTEGRATED / ANALOG DEVICES MAX1792EUA50 Low-Dropout Linear Regulator Specifications:
- Input Voltage Range: +2.5V to +5.5V
- Output Voltage: Preset at 1.5V, 1.8V, 2.5V, 3.3V, or 5.0V, adjustable from 1.25V to 5.0V
- Load Current: Up to 500mA
- Dropout Voltage: 130mV at 500mA
- Quiescent Current: 80uA in operation, 0.1pA in shutdown
- Thermal Shutdown: 170°C with hysteresis of 20°C
- Package: 8-pin Power-uMAX with exposed pad
- Reset Output: Open-drain, active-low, with 4ms delay
- Short Circuit Protection: Yes
- Line Regulation: 0.15% to 0.15% (typ)
- Load Regulation: 0.4% to 1.0% (typ)
- Capacitors: 1μF input, 3.3μF output low-ESR recommended
- Operating Temperature: -40°C to +85°C
Buy the Maxim Series MAX1792 Linear Regulator: 500mA Adjustable Low-Dropout
Purchase the Maxim Series MAX1792 low-dropout linear regulator online today and upgrade your portable device power management. Designed for battery-powered applications, it provides up to 500mA with high accuracy and low dropout voltage. Its compact 8-pin Power-uMAX package includes thermal shutdown, short-circuit protection, and a reset output, making it ideal for smartphones, PDAs, and notebooks. Easy to integrate with minimal external capacitors, ensuring stable performance in space-constrained designs. Reliable, efficient power regulation is just a click away.
Order your Maxim Series MAX1792 500mA Low-Dropout Linear Regulator today and ensure reliable power regulation for your battery-operated projects.
