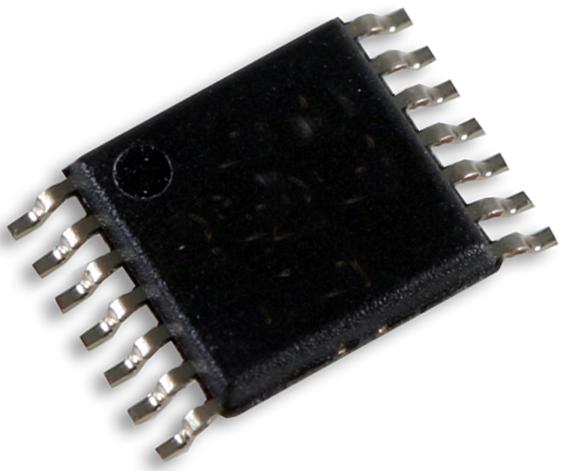

MAXIM INTEGRATED / ANALOG DEVICES DS1845E010 Dual Non-Volatile Potentiometer
The DS1845E-010+ is a dual non-volatile potentiometer and memory in a 14-pin TSSOP package. It features one 100-position linear taper potentiometer and one 256-position linear taper potentiometer, along with 256 bytes of EEPROM memory and a 2-wire interface. This device is ideal for setting bias voltages and currents in control applications with minimal circuitry. The EEPROM allows storage of configuration or calibration data, as well as control of potentiometer wiper settings. Data in the first 248 bytes of EEPROM can be used for user information, while the last two addresses are dedicated to potentiometer settings. Access to EEPROM is via an industry-standard 2-wire bus, and both wiper position and EEPROM data can be hardware write protected through the write protect (WP) pin. Multiple units (up to eight) can be connected on a single bus. The device operates from 3V or 5V power supplies.
MAXIM INTEGRATED / ANALOG DEVICES DS1845E010 Dual Non-Volatile Potentiometer Specifications:
- Operating Voltage: 3V to 5V
- Package: 14-pin TSSOP
- Potentiometer 0: 100 positions, wiper at address F9h
- Potentiometer 1: 256 positions, wiper at address F8h
- EEPROM Memory: 256 bytes
- Control Interface: Industry-standard 2-wire bus
- Write Protect: Via WP pin, active high
- Temperature Range: -40°C to +85°C
- Wiper Resistance: 500 to 1000 Ohms at 3V, 250 to 600 Ohms at 5V
- Wiper Current: Up to 2 mA
- Device Addressing: Through AO, Al, A2 pins for up to 8 units
- Data Storage: User data, calibration info, and potentiometer settings
- Factory Default Wiper Position: FFh for both potentiometers
