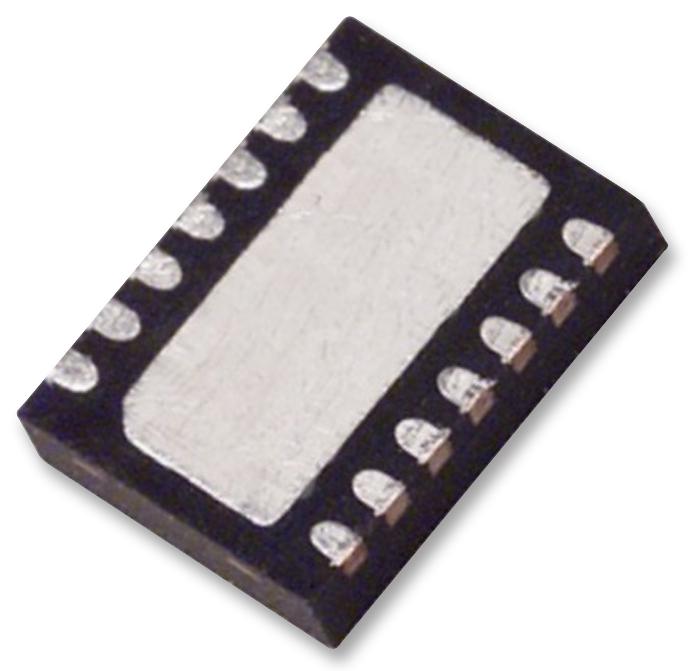

The DS2775G+ is a dual cell, stand-alone Li+ fuel gauge IC with protector in 14 pin TDFN package. This device supports rechargeable lithium-ion (Li+) and Li+ polymer (Li-Poly) batteries in mAh and as a percentage of full. Safe operation is ensured by the integrated Li+ protector. DS2775 capability includes precision measurements of voltage, temperature and current along with a cell characteristics table and application parameters. The capacity registers report a conservative estimate of the amount of charge that can be removed given the current temperature, discharge rate, stored charge and application parameters. the device offers a 16 bytes of EEPROM for use by the host system and/or pack manufacturer to store battery lot and date tracking information. The EEPROM can also be used for non-volatile storage of system and/or battery usage statistics.




Supply voltage range is 4V to 9.2V

Operating temperature range from -20°C to 70°C

1-wire interface with 64bit unique ID

High-side nFET driver and protection circuitry

Estimates cell aging between learn cycles

Uses low-cost sense resistor

Allows calibration of gain and temperature coefficient

Programmable thresholds for overvoltage and overcurrent

32byte parameter EEPROM





Applications


Power Management,

Portable Devices,

Imaging, Video & Vision
