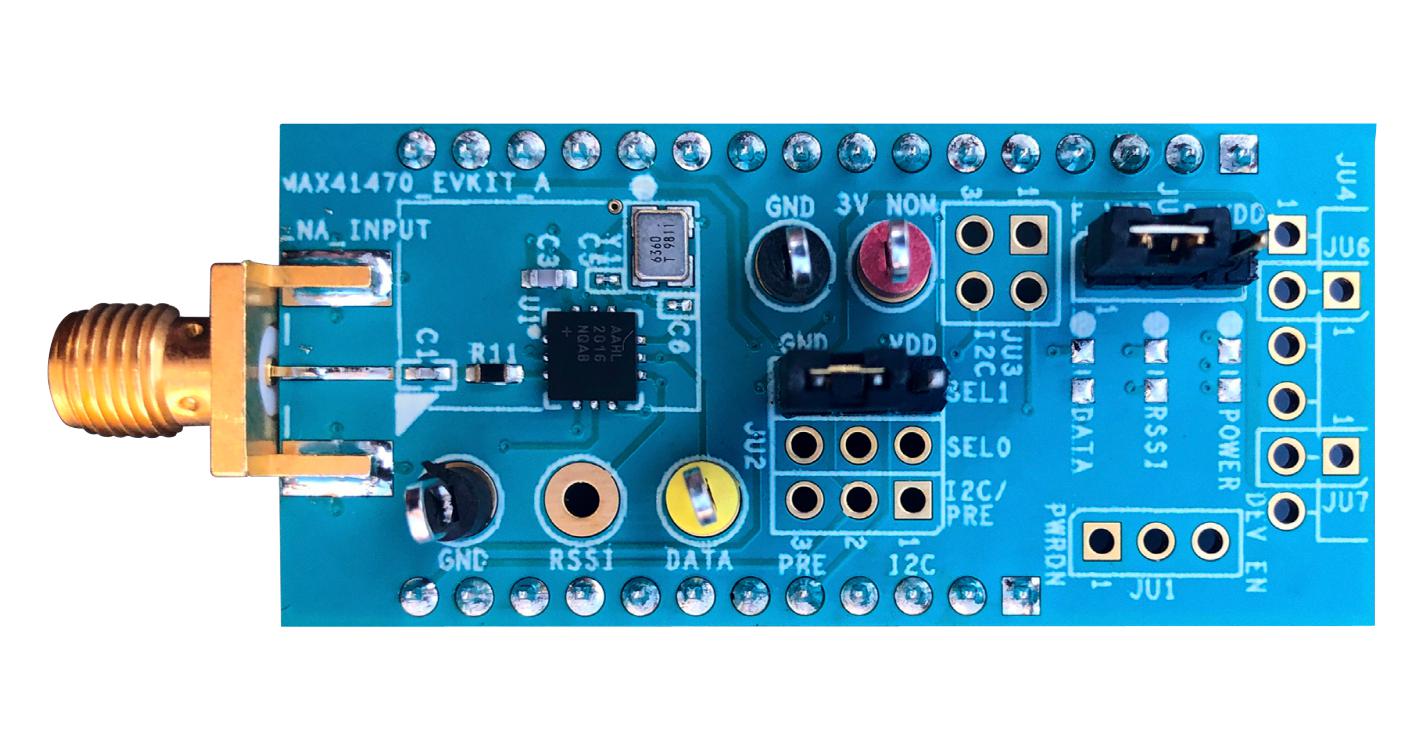

MAXIM INTEGRATED / ANALOG DEVICES MAX41470EVKIT Wireless Receiver Module
The MAX41470 evaluation kit offers a high-performance, sub-GHz ISM/SRD receiver designed for flexible wireless applications in the 287MHz to 960MHz frequency ranges. Featuring a user-friendly GUI, it supports ASK, FSK, and Gaussian GFSK modulation, with an SPI interface for internal register configuration. Powered by a single 1.8V to 3.6V supply, it connects seamlessly with a MAX32630FTHR microcontroller, includes a Pmod interface, and supports real-time control and data analysis through Windows 10-compatible software. Fully assembled, tested, and designed with a proven PCB layout, it is ideal for developing robust wireless systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX41470EVKIT Wireless Receiver Module Specifications:
- Frequency Range: 287MHz to 320MHz, 425MHz to 480MHz, 860MHz to 960MHz
- Power Supply: 1.8V to 3.6V, 20mA max
- Modulation Support: ASK, FSK, Gaussian GFSK
- Interface: SPI with 3-wire connection, optional I2C via jumper
- Crystal Frequency: 16.000MHz (default), adjustable to 12.8MHz or 19.2MHz
- Receiver Bandwidth Options: 170kHz, 60kHz, 26kHz, 12kHz, 6kHz (dependent on IF)
- Data Rate: adjustable via GUI, supports rates typically from 2 kbps to 25 kbps
- GUI Software: Windows 10-compatible, supports register control, status monitoring, and time plotting
- Hardware: Fully assembled, tested, with four-layer PCB, includes MAX32630FTHR microcontroller platform
- Connectors: SMA input, USB, PMOD header for interfacing with external MCUs
- Additional Features: Preambles detection, configurable IF, bandwidth, and FSK deviation
- Enclosure: Compact form factor suitable for embedded wireless applications
Buy the Maxim Series MAX41470 Wireless Receiver: MAX41470EVKIT
Purchase the Maxim Wireless Receiver Module today to accelerate your wireless system development. Featuring flexible frequency support, GUI control, and easy integration with microcontrollers, it ensures reliable performance for your applications. The MAX41470EVKIT is fully assembled and tested, providing a straightforward solution for engineers seeking high-quality, tunable receiver options. With detailed software, hardware, and configurable options, this kit is ideal for prototyping and deploying advanced RF systems quickly and efficiently. Order now to enhance your innovation capacity.
Get Maxim MAX41470 evaluation kit today—built for flexibly developing 287-960MHz wireless systems with GUI support and robust hardware.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX41470EVKIT?
You can click on the BUY or RFQ button to purchase MAX41470EVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX41470EVKIT?
You can download the MAX41470EVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX41470EVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
