MAXIM INTEGRATED / ANALOG DEVICES ICL7135CQI Analog-to-Digital Converter
The ICL7135CQI+ is a 4½ digit analog-to-digital converter (ADC) featuring multiplexed BCD outputs in a 28-pin PLCC package. It comprises an analog section and a digital control section. The device performs measurements through four phases: auto-zero (AZ), signal integrate (INT), reference deintegrate (DE), and zero integrator (ZI), with the digital section managing timing and operation via counters and comparator states. It is suitable for various measurement applications involving pressure, voltage, weight, resistance, temperature, speed, current, and material thickness. Key features include a supply voltage range of 4V to 6V, an operating temperature range from 0°C to 70°C, monolithic CMOS design, support for parallel and UART interfaces, ±20,000 count resolution with ±1 count accuracy, auto-ranging capabilities with over-range and under-range signals, true differential inputs that read zero at 0V, and TTL-compatible multiplexed BCD outputs.
MAXIM INTEGRATED / ANALOG DEVICES ICL7135CQI Analog-to-Digital Converter Specifications:
- Resolution: ±20,000 counts with ±1 count accuracy
- Input Voltage Range: 0V to 2V (full scale 4V to 6V supply)
- Operating Temperature: 0°C to 70°C
- Supply Voltage: 4V to 6V
- Power Dissipation: Low power CMOS design
- Input Type: True differential, reads zero at 0V
- Outputs: TTL-compatible multiplexed BCD
- Measurement Phases: Auto-zero, signal integrate, reference deintegrate, zero integrator
- Over-range and under-range signals for auto ranging
- Package: 28-pin PLCC
- Support for parallel and UART interfaces

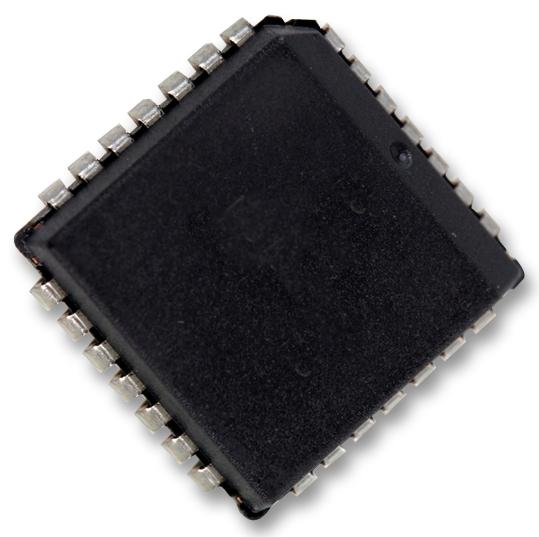

Buy the Buy Maxim ICL7135CQI+ Part Number ICL7135CQI Online
