MAXIM INTEGRATED / ANALOG DEVICES MAX1694EUB USB Power Switch
The MAX1694EUB is a compact, high-efficiency USB power switch designed for current limiting and fault protection in portable devices, hubs, and docking stations. It provides adjustable current limit from 0.7A to 1.0A, with built-in fault blanking for transient overcurrent events. The device features thermal shutdown, short-circuit protection, and a latched fault indicator that notifies the system of faults. With a wide supply range of 2.7V to 5.5V, it's ideal for 3V and 5V systems, ensuring reliable and safe power distribution in portable and USB applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX1694EUB USB Power Switch Specifications:
- Input Voltage Range: 2.7V to 5.5V
- Output Current Limit: 0.7A to 1.0A
- Fault Blank Time: 10 ms
- Thermal Shutdown: 165°C
- Short-Circuit Protection: Guaranteed 0.75A
- Supply Current: 14 μA (quiescent), 1 μA (shutdown)
- Package: 10-pin uMAX
- Operating Temperature Range: -40°C to +85°C
- Power Dissipation: 444 mW at TA=+70°C, derated 5.6 mW/°C
- Input/Output Capacitance: 1 μF (input), 0.1 μF (output)
- Turn-On Time: 80–200 μs
- Turn-Off Time: 3–20 μs
- Fault Output: Open-drain, active low

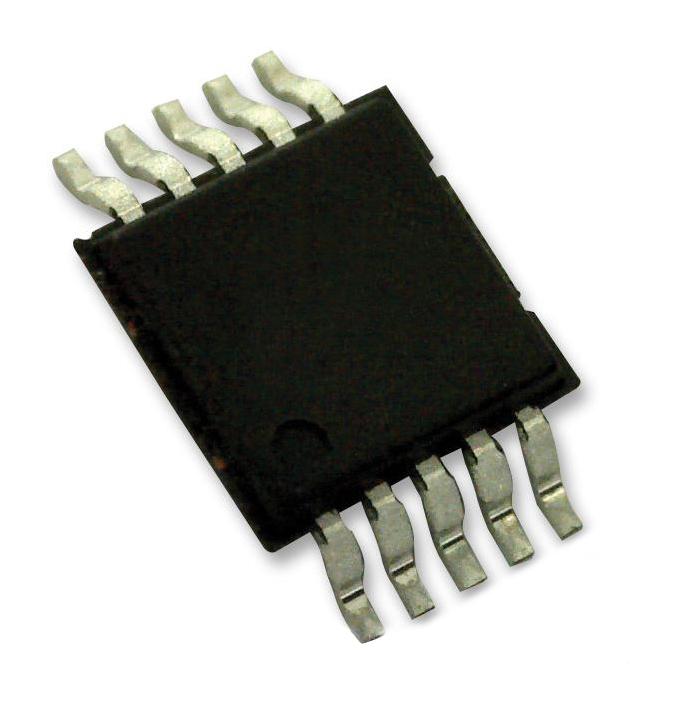

Buy the Buy MAXIM MAX1694EUB Current-Limited USB Switch Part Number MAX1694EUB Online
Purchase the MAX1694EUB USB power switch online today to provide your portable electronics and USB hubs with precise current limiting and robust fault protection. This compact switch features fault blanking, thermal shutdown, and guaranteed short-circuit protection, ensuring safe operation in mobile and docking stations. With a wide input voltage range of 2.7V to 5.5V and low quiescent current, it conserves power in portable applications. Reliable, easy to implement, and ideal for USB port expansion and hot-swappable power sources, order now for seamless integration.
Order your MAXIM MAX1694EUB high-current USB switch today and ensure your portable devices have reliable overcurrent and fault protection.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX1694EUB?
You can click on the BUY or RFQ button to purchase MAX1694EUB from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX1694EUB?
You can download the MAX1694EUB datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX1694EUB?
MAXIM INTEGRATED / ANALOG DEVICES
