MAXIM INTEGRATED / ANALOG DEVICES ICM7211AMIQHD Display Driver
The ICM7211AMIQH+D is a four-digit display decoder and driver packaged in a 44-pin PLCC. It features integrated input data latches, a BCD-to-segment decoder, level translation, and timing circuits necessary for driving non-multiplexed LCD displays. Designed for microprocessor interfaces, it accepts four BCD data inputs, two digit address lines, and two chip select or write inputs. Its low power consumption makes it suitable for battery-powered applications, such as intelligent instruments, digital panel displays, remote display units, and microprocessor-to-display communications. Key specifications include a supply voltage range of 3V to 6V, an operating temperature range of -20°C to 85°C, and a typical operating power of 25µW with a current draw of 10µA. It eliminates the need for external components, provides increased segment current, and features code B output for enhanced display performance.
MAXIM INTEGRATED / ANALOG DEVICES ICM7211AMIQHD Display Driver Specifications:
- Supply Voltage Range: 3V to 6V
- Operating Temperature Range: -20°C to 85°C
- Power Dissipation: 25µW (typical, display blanked)
- Input Data: 4 BCD inputs, 2 digit address lines, 2 chip select inputs
- Package: 44-pin PLCC
- Level Translation: Included
- Timing Circuits: Integrated
- Current Consumption: 10µA (typical)
- Output: Code B for enhanced display performance
- Application: LCD driving, microprocessor interface, battery-powered systems

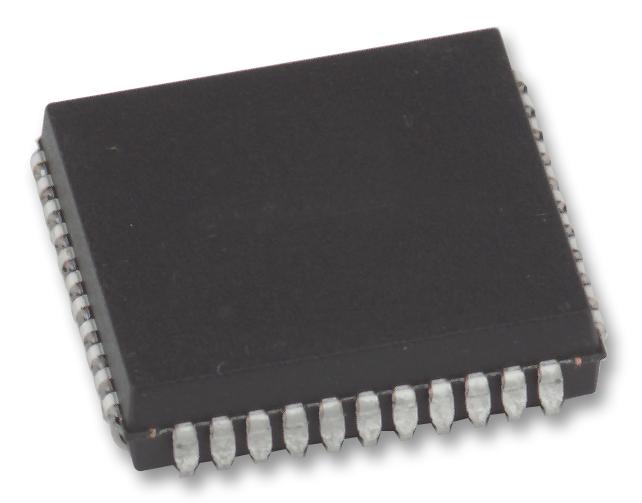

Buy the Buy Maxim ICM7211AMIQHD Display Driver Part Number ICM7211AMIQHD Online
Order the Maxim ICM7211AMIQHD four-digit display driver today online to enhance your LCD projects with integrated input latches, low power operation, and no external components needed. Perfect for battery-powered devices, intelligent instruments, and remote display units, this driver simplifies design by offering microprocessor compatibility, an extensive temperature range, and efficient power usage. Get premium reliability, cost-effective implementation, and seamless integration for your display solutions by purchasing this versatile microprocessor interface driver now.
Buy Maxim ICM7211AMIQHD now and experience low power consumption and reliable microprocessor-driven LCD display performance.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES ICM7211AMIQHD?
You can click on the BUY or RFQ button to purchase ICM7211AMIQHD from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part ICM7211AMIQHD?
You can download the ICM7211AMIQHD datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of ICM7211AMIQHD?
MAXIM INTEGRATED / ANALOG DEVICES
