MAXIM INTEGRATED / ANALOG DEVICES MAX1168BCEG Multichannel ADC
The MAX1168BCEG+ is a 16-bit, multichannel ADC capable of 200 kSps, housed in a 24-pin QSOP. It features a successive-approximation ADC with integrated 4.096V reference, high-speed serial interface compatible with SPI/QSPI/MICROWIRE, and supports scan modes for sequential or continuous conversion. Designed for single +5V analog and separate digital supplies from 2.7V to 5.5V, it offers internal/external reference modes and DSP interface for easy DSP communication. Low power, high accuracy, and wide bandwidth make it ideal for signal processing, industrial control, and data acquisition.
MAXIM INTEGRATED / ANALOG DEVICES MAX1168BCEG Multichannel ADC Specifications:
- Resolution: 16 Bits
- Sampling Rate: 200kSps
- Input Voltage Range: 0 to VREF
- Reference Voltage: Internal +4.096V or External +3.8V to AVpp
- Input Channels: Up to 8 with multiplexer
- Input Capacitance: 45 pF
- Interface: SPI/QSPI/MICROWIRE-compatible, 3-wire serial interface
- Power Supply: +5V analog, 2.7V to 5.5V digital
- Power Consumption: 1.7mA at 200kSps, 0.045mA in shutdown
- Bandwidth: 4 MHz
- Operating Temperature: 0°C to 70°C
- Package: 24-pin QSOP
- Accuracy: Max INL of ±3LSB, DNL within 1LSB
- Features: Scan modes, auto-power-down, DSP interface, external/internal reference
- Signal-to-Noise Ratio: Up to 88.5 dB
- Total Harmonic Distortion: -100 dB
- Spurious-Free Dynamic Range: 81 dB

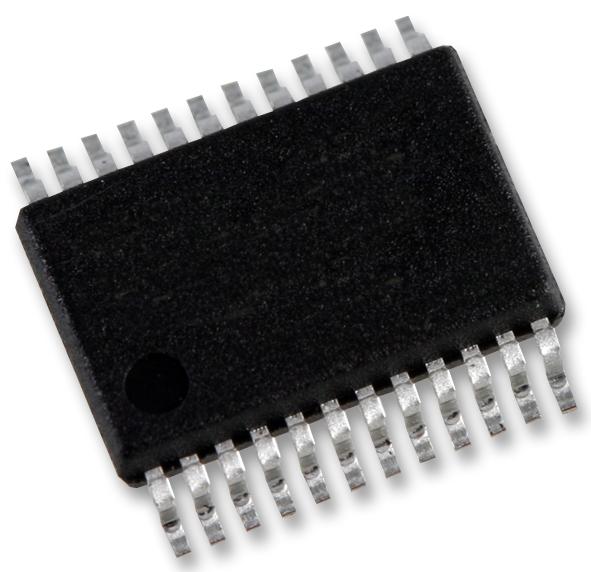

Buy the Maxim Series MAX1168 Digital Converter: 16-bit, 200kSps, QSOP
Purchase the Maxim series MAX1168 online today and empower your industrial control, data acquisition, or signal processing systems with this high-speed 16-bit ADC. Featuring a 200kSps sampling rate, integrated 4.096V reference, and a versatile SPI/QSPI interface, it offers precise multi-channel measurement with low power consumption. Ideal for demanding environments, it ensures high accuracy and fast conversion times. Secure your order now to improve your project's performance and reliability effortlessly with this advanced, compact ADC module.
Order your Maxim series MAX1168 high-precision ADC today and enhance your industrial or signal processing projects with reliable, efficient data acquisition.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX1168BCEG?
You can click on the BUY or RFQ button to purchase MAX1168BCEG from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX1168BCEG?
You can download the MAX1168BCEG datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX1168BCEG?
MAXIM INTEGRATED / ANALOG DEVICES
