MAXIM INTEGRATED / ANALOG DEVICES MAX505ACAG 8-bit DAC
The MAX505ACAG+ is a quad 8-bit digital-to-analog converter (DAC) with rail-to-rail voltage outputs housed in a 24-pin SSOP package. It operates with a single 5V supply or dual ±5V supplies. The device features internal precision output buffers, can independently set full-scale ranges with four reference inputs, and ensures factory calibration within ±1 LSB of total unadjusted error across temperatures. It supports all outputs to be updated simultaneously via an asynchronous LDAC, offers compatibility with microprocessors and TTL/CMOS logic levels, and requires no external adjustments. Ideal for arbitrary function generators, test equipment, and programmable attenuators, it provides stable performance with a 1V/μs slew rate and 6μs settling time.
MAXIM INTEGRATED / ANALOG DEVICES MAX505ACAG 8-bit DAC Specifications:
- Resolution: 8 Bits
- Output Voltage Range: Rail-to-rail swing from VSS (-5.5V) to VCC (+5V)
- Power Supply: 4.5V to 5.5V (single supply) or dual ±5V supplies
- Temperature Range: 0°C to 70°C
- Reference Inputs: Four separate inputs, span both supply rails
- Linearity: ±1 LSB total unadjusted error
- Settling Time: 6 μs
- Output Slew Rate: 1 V/μs
- Supply Current: approximately 5 mA on both positive and negative supplies
- Zero-Code Output Error: approximately 14 mV at code 00 hex
- Full-Scale Error: approximately 14 mV at code FF hex
- Interface: Parallel, compatible with microprocessors, TTL/CMOS logic
- Calibration: Factory calibrated for offset, gain, linearity
- Package: 24-pin SSOP
- Maximum Digital Input Voltage: 5V
- Differential Nonlinearity: ±1 LSB

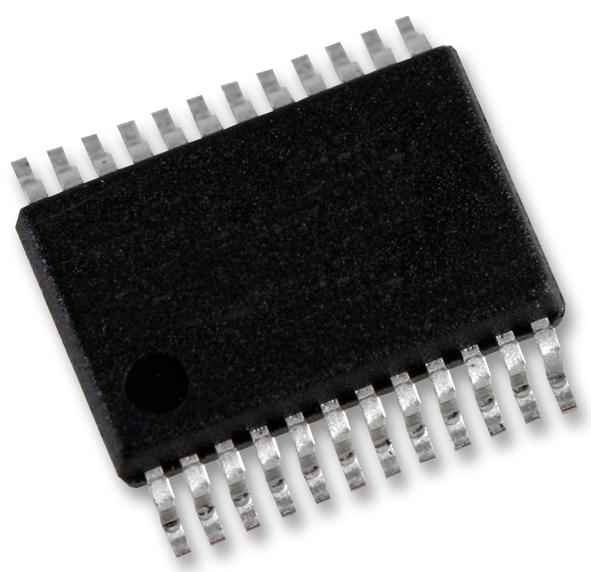

Buy the Maxim Series MAX505 DAC: 8-bit Digital-to-Analog Converter: MAX505ACAG
Order the Maxim MAX505ACAG digital-to-analog converter online today and enhance your signal processing systems with its rail-to-rail outputs, independent references, and fast settling time. Perfect for automation, test equipment, or industrial controls, this 8-bit DAC delivers high accuracy within a compact 24-pin SSOP package. Its factory calibration ensures consistent performance across temperature extremes. Designed for reliable operation with a single 5V or dual ±5V power supplies, it requires no external adjustments—simply connect, configure, and optimize your analog system for precision and stability.
Get Maxim MAX505ACAG today—built for precision and long-lasting durability in signal processing and industrial control applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX505ACAG?
You can click on the BUY or RFQ button to purchase MAX505ACAG from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX505ACAG?
You can download the MAX505ACAG datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX505ACAG?
MAXIM INTEGRATED / ANALOG DEVICES
