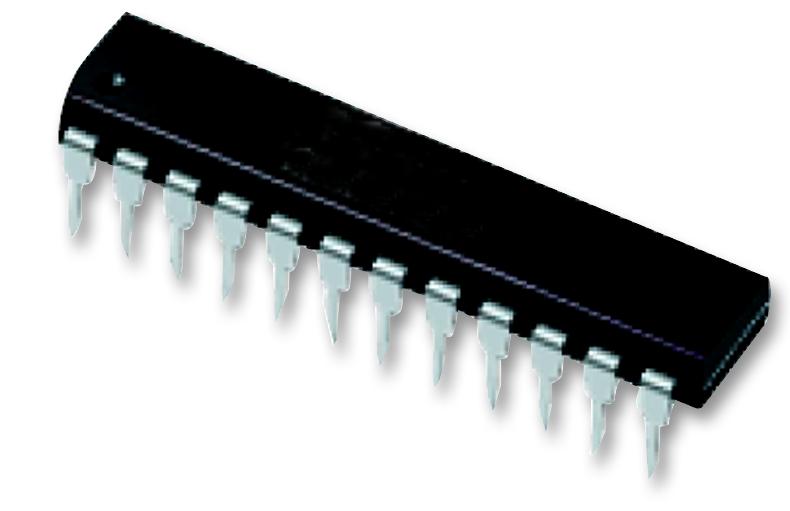

MAXIM INTEGRATED / ANALOG DEVICES MAX128BCNG+ Datasheet & Stock

The MAX128BCNG+ is a multirange, +5V, 12bit data acquisition system (DAS) with 2-wire serial interface in 24 pin DIP package. Device operates at single supply, yet accepts signals at its analogue inputs that may span above the power supply rail and below ground. It provides eight analogue input channels that are independently software programmable for variety of ranges such as ±VREF, ±VREF/2, 0 to +VREF and 0 to +VREF/2. This range switching increases effective dynamic range to 14bits and provides flexibility to interface 4mA-20mA, ±12V & ±15V powered sensors directly to a single +5V system. The converter is fault protected to ±16.5V and a fault condition on any channel will not affect the conversion result of selected channel. A hardware shutdown input (SHDN-complementary) & two software programmable power-down modes (standby & full power-down) are provided for low current shutdown between conversions. In standby mode, the reference buffer remains active, eliminating start-up delays.




Supply voltage range is 4.75V to 5.25V

Operating temperature range from 0°C to 70°C

I2C compatible, 2-wire serial interface

Sampling rate is 8Ksps

±16.5V overvoltage tolerant input multiplexer

Internal 4.096V or external reference

Total harmonic distortion of -80dB

Integral nonlinearity (INL) is ±1LSB, differential nonlinearity (DNL) is ±1LSB

Battery-Powered Applications; Data Acquisition; Industrial Control Systems; Robotics
