MAXIM INTEGRATED / ANALOG DEVICES MAX3238CAI RS-232 Transceiver
The MAX3238 is a high-efficiency RS-232 transceiver with AutoShutdown Plus feature, operating from a single 3.0V to 5.5V power supply. It provides 5-driver and 3-receiver channels, offering true RS-232 performance with guaranteed data rates up to 250kbps. The device automatically powers down after 30 seconds of inactivity, saving power, and reactivates on valid signal transitions. Its dual charge pump generates ±5.5V supplies internally, supporting high data integrity and low power consumption ideal for notebook, modem, and peripheral applications in both 3.3V and 5V systems. Compact SSOP package for space-saving designs.
MAXIM INTEGRATED / ANALOG DEVICES MAX3238CAI RS-232 Transceiver Specifications:
- Supply Voltage Range: 3.0V to 5.5V
- Data Rate: Up to 250kbps
- Power Consumption: 1pA during shutdown, 20mA active
- Charge Pump Output Voltages: +5.5V and -5.5V
- Charge Pump Capacitors: C1, C2 (0.1uF or larger), C3, C4 (0.1uF or larger)
- Receiver Input Voltage Range: -25V to +25V
- Transmitter Output Voltage Swing: ±5.0V typical at loads of 3kΩ in parallel with 1000pF
- Output Resistance: 300Ω to 10MΩ depending on load
- Operating Temperature: 0°C to +70°C (MAX3238CAI), -40°C to +85°C (MAX3238EAI)
- Package Type: 28-pin SSOP
- Power Dissipation: 762mW at +70°C
- Input Thresholds: Low at 0.8V (3.3V), High at 2.4V (5V)
- Rise and Fall Time: Guaranteed 6V/μs slew rate
- Extra Receiver Output: R1OUTB for monitoring without forward biasing
- Includes AutoShutdown Plus for power saving
- Supports direct interface with 3.3V and 5V logic families

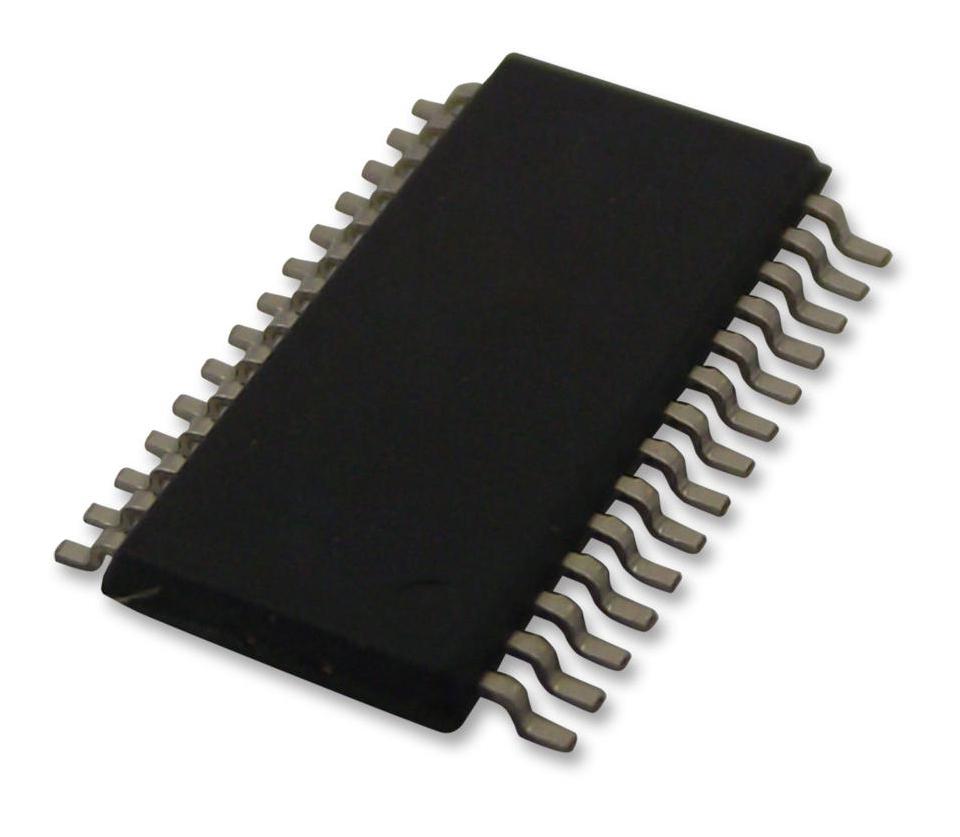

Buy the Buy MAXIM MAX3238CAI Part Number MAX3238CAI Online
Purchase the MAXIM MAX3238CAI RS-232 transceiver online today and ensure reliable, high-speed serial communication for your projects. The MAX3238 offers automatic power shutdown to minimize power consumption during inactive periods, making it perfect for battery-powered and portable devices. Its dual charge pump generates ±5.5V supplies internally, supporting true RS-232 performance at data rates up to 250kbps. Compatible with 3.3V and 5V logic, it supports various communication applications, including notebooks, modems, and peripherals. Space-saving SSOP package guarantees easy integration, providing dependable operation in compact designs.
Order your MAXIM MAX3238CAI RS-232 transceiver today and enhance your communication systems with high-performance, low-power serial interface solutions.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX3238CAI?
You can click on the BUY or RFQ button to purchase MAX3238CAI from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX3238CAI?
You can download the MAX3238CAI datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX3238CAI?
MAXIM INTEGRATED / ANALOG DEVICES
