MAXIM INTEGRATED / ANALOG DEVICES MAX13362ATLV Automotive Switch Monitor
The MAX13362 is a 24-channel automotive contact monitor designed for interfacing mechanical switches with low-voltage processors. It operates over 5.5V to 28V, withstands up to 40V, and features an SPI interface for switch status monitoring, configuration, and interrupt control. It supports continuous, polling, and shutdown modes, with programmable wetting currents for switch contact cleaning and overtemperature protection. The device is ideal for automotive body controllers, door modules, and smart junction boxes. It ensures reliable switch detection and system safety in harsh automotive environments.
MAXIM INTEGRATED / ANALOG DEVICES MAX13362ATLV Automotive Switch Monitor Specifications:
- Operating Voltage Range: 5.5V to 28V
- Maximum Voltage Tolerance: 40V
- Number of Channels: 24
- Package: 6mm x 6mm, 40-pin thin QFN
- Operating Temperature Range: -40°C to +125°C
- Shutdown Current: ~6μA (typ)
- Switch Input Voltage Threshold: 5.5V to 28V
- Switch Input Voltage Withstand: 27V
- Power Dissipation: Up to 2963mW
- Overtemperature Threshold: +165°C
- SPI Clock Frequency: Up to 4MHz
- Input Leakage Current: 22nA (typ)
- Input Dropout Voltage: 28V (max)
- Overtemperature Warning: Signal asserted at +165°C
- Wetting Current Programmable: 0mA, 5mA, 10mA, 15mA
- Built-in Switching Hysteresis and De-glitching
- Reverse Battery Tolerance: Up to -15V on IN inputs
- Mounting: Through the TQFN package with exposed pad
- Mechanical withstands ESD: 2kV (HBM), 8kV (IEC 61000-4-2)

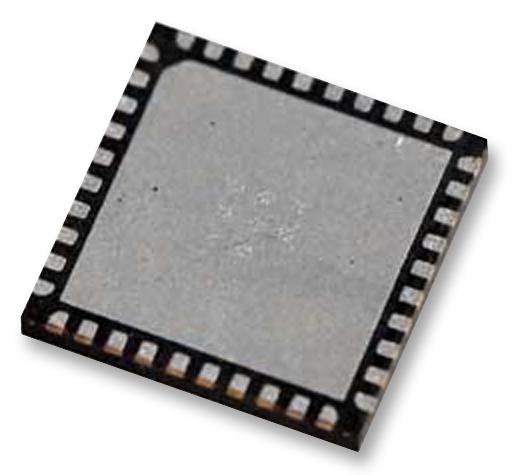

Buy the Buy Maxim MAX13362ATLV Automotive Switch Monitor Part Number MAX13362ATLV Online
Order the Maxim MAX13362ATLV online today to enhance your automotive control system. This 24-channel switch monitor offers programmable wetting current, overtemperature protection, and a robust SPI interface, ideal for vehicle body controllers, door modules, and smart junction boxes. Easy to integrate into your design, it provides reliable switch status detection and system safety under automotive conditions. Built with industry-leading standards, the MAX13362 ensures long-lasting performance for your automotive applications. Purchase now for quick delivery and competitive pricing.
Get Maxim MAX13362ATLV today—designed for automotive switch monitoring, protection, and reliable performance in harsh environments.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX13362ATLV?
You can click on the BUY or RFQ button to purchase MAX13362ATLV from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX13362ATLV?
You can download the MAX13362ATLV datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX13362ATLV?
MAXIM INTEGRATED / ANALOG DEVICES
