MAXIM INTEGRATED / ANALOG DEVICES MAX77503AEVKIT Buck Converter Evaluation Kit
The MAX77503 evaluation kit is a ready-to-use PCB demonstrating a high-efficiency synchronous buck converter capable of input voltages from 3V to 14V and delivering up to 1.5A output current. It supports both internal and external feedback configurations with adjustable output voltage ranges from 0.8V to 5V. Featuring an on-board dual-range electronic load and a USB-to-I2C interface for easy control via Windows software, the kit simplifies evaluation and prototyping of the MAX77503 power management IC, making it ideal for applications requiring compact, reliable voltage regulation.
MAXIM INTEGRATED / ANALOG DEVICES MAX77503AEVKIT Buck Converter Evaluation Kit Specifications:
- Input Voltage Range: 3V to 14V
- Output Voltage Range: 0.8V to 5V (internal feedback), 1.55V to 99% of input (external feedback)
- Maximum Output Current: 1.5A
- Electronic Load: Dual-range, 10mA or 2.56A full-scale
- Control Interface: USB-to-I2C with Windows GUI
- Regulator Enable: Controlled via jumper or GUI
- Soft-start Time: Programmable via software
- Feedback resistor options: R3 (4.7µH), R4 (10kΩ default)
- Package Compatibility: 2520 inductor, 0402 resistors/capacitors
- Operational Temperature: -55°C to +125°C
- Power Supply for Evaluation: 15V, 2A capacity
- Dimensions: Compact PCB, standard SMT components

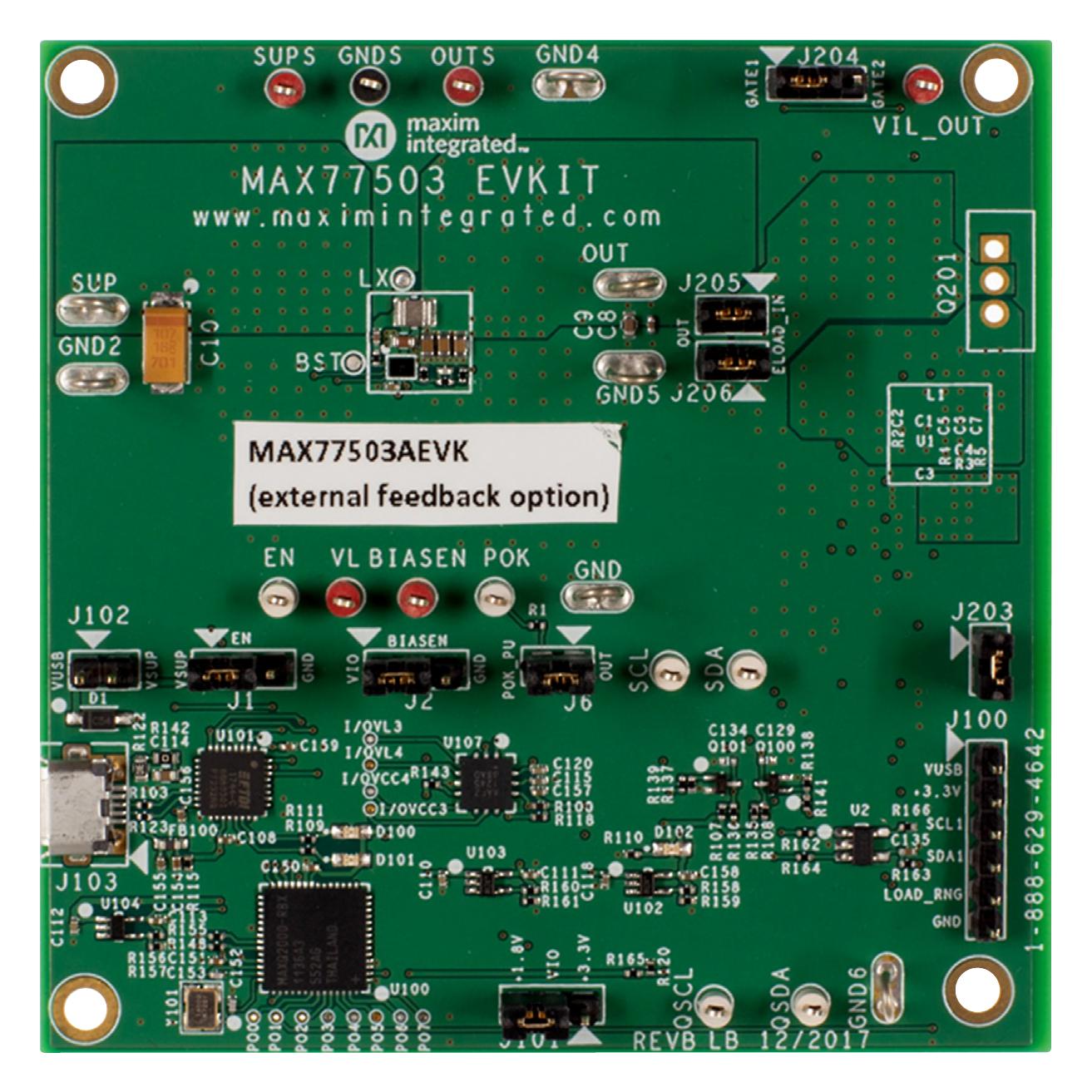

Buy the Buy MAXIM Integrated MAX77503 Part Number MAX77503AEVKIT Online
Purchase the MAXIM MAX77503 evaluation kit online today and simplify your power management development. This ready-to-use PCB features adjustable output voltage from 0.8V to 5V, supporting input voltages from 3V to 14V with up to 1.5A load capacity. It includes an on-board dual-range electronic load and a USB-to-I2C interface for quick software control. Ideal for engineers and developers, the kit accelerates prototyping, testing, and evaluation of high-efficiency buck converters in a compact, reliable package.
Order your MAXIM MAX77503 series evaluation kit today and experience reliable, efficient power regulation with easy USB control and adjustable output voltage.
