MAXIM INTEGRATED / ANALOG DEVICES MAX1363EUB+ Datasheet & Stock

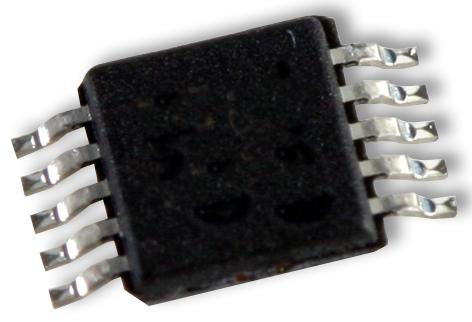

The MAX1363EUB+ is a 4-channel, 12bit system monitor with programmable trip window and SMBus alert response in 10 pin µMAX package. This ADC has digitally programmable window comparator with an interrupt output for automatic system monitoring applications. Once configured, monitor mode automatically asserts an interrupt when any analogue input exceeds programmed upper or lower thresholds without interaction to host. The MAX1363 responds to SMBus alert by allowing quick identification of alarming device on shared interrupt. The device integrates an internal voltage reference, clock and 1.7MHz high speed I2C compatible 2-wire serial interface. The optimized interface allows a maximum conversion rate of 94.4Ksps in normal mode and 133Ksps (monitor mode). AutoShutdown powers down devices between conversions by reducing supply current to less than 1μA when idle. It is used in servers/workstations and high reliability power supplies.




Supply voltage range from 2.7V to 3.6V

Operating temperature range from -40°C to 85°C

4-channel single-ended or 2-channel fully differential inputs

Programmable lower/upper trip threshold and alarm status register records fault events

Software programmable bipolar/unipolar conversions

Internal reference of 2.048V and external reference of 1V to VDD

±1LSB INL, ±1LSB DNL, ±4LSB offset error and ±4LSB gain error

660μA (internal reference) & 436μA (external) supply current (fSAMPLE =133Ksps, monitor mode)

Power supply rejection ratio of ±0.01LSB/V and serial clock frequency of 400KHz

Shutdown current of 333μA (internal reference on) and 0.5μA (internal reference off)





Applications


Signal Processing,

Medical,

System Monitoring





Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
