MAXIM INTEGRATED / ANALOG DEVICES MAX14586ETAT Overvoltage Protector
The MAX14586 overvoltage protector features a low 48mQ on-resistance internal FET, protecting low-voltage systems against voltage faults up to +36V. It offers adjustable overvoltage threshold between +4V and +20V, with preset internal thresholds at 7V or 15V. Equipped with thermal shutdown, soft-start, and debounce to enhance system reliability, this compact 8-pin TDFN package device is suitable for smartphones, tablets, and portable devices. It provides a robust solution to prevent component damage from voltage surges and overcurrent events, ensuring system safety and longevity.
MAXIM INTEGRATED / ANALOG DEVICES MAX14586ETAT Overvoltage Protector Specifications:
- Input Voltage Range: 2.2V to 36V
- Switch On-Resistance: 48mQ (typ), 115mQ max
- Thermal Shutdown: +150°C (typ), hysteresis 20°C
- Max Continuous Current: 3A
- Peak Current (10ms): 5A
- Operating Temperature Range: -40°C to +85°C
- Package: 8-pin TDFN (2mm x 2mm)
- GND Pin connects to ground, OUT connected to load, IN to power source
- Internal FET with internal charge pump for turn-on control
- Adjustable OVLO threshold via external resistor divider
- Preset OVLO thresholds: MAX14586 at 7V, MAX14590 at 15V
- Debounce time: 15ms for startup soft-start
- ESD protection: +15kV HBM for IN
- Connect OVLO to GND to use internal threshold, or to a resistor divider for custom threshold
- Supports high inrush currents up to 5A (peak)

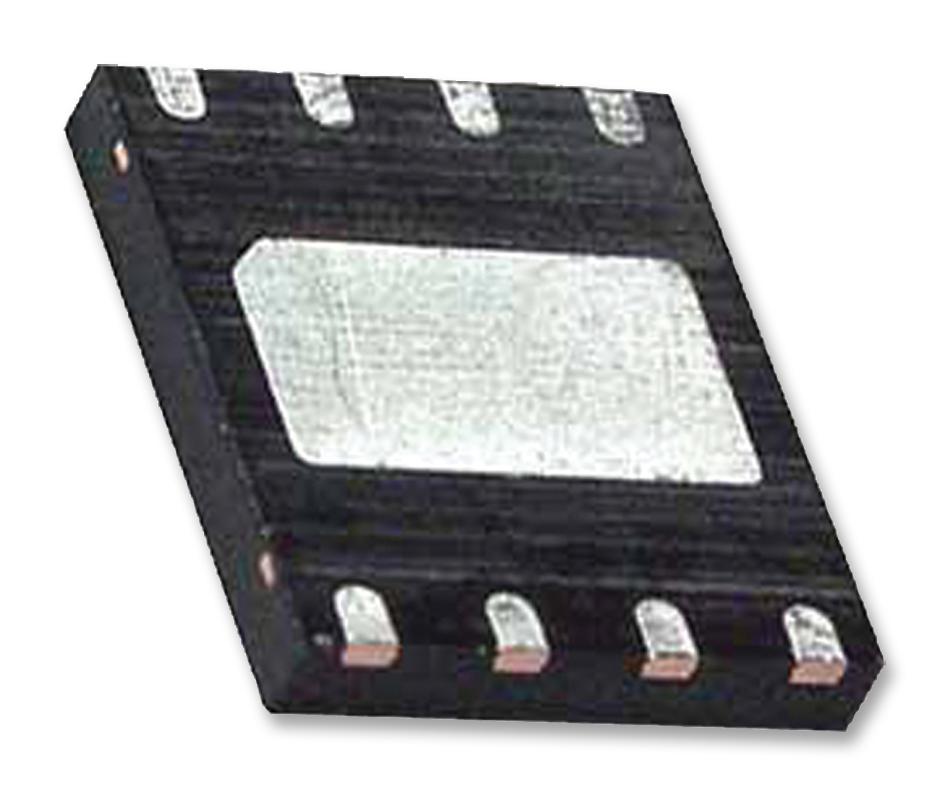

Buy the Buy MAXIM MAX14586ETAT High-Current Overvoltage Protector Part Number MAX14586ETAT Online
Secure your portable device with the MAX14586ETAT overvoltage protector, offering adjustable thresholds, low on-resistance, thermal shutdown, and high current capacity. Designed for compact systems, it ensures reliable protection against voltage surges from +2.2V to +36V, safeguarding delicate components during overvoltage conditions. Its small 8-pin TDFN package fits efficiently within your design, providing excellent thermal performance and fault protection. Buy now to enhance system safety, prevent damage, and ensure long-term durability in mobile applications.
Get MAXIM MAX14586ETAT today—built for precision and long-lasting durability in portable electronic protection.
