MAXIM INTEGRATED / ANALOG DEVICES MAX20046AGTCV automotive USB protector
The MAX20046 is an automotive high-speed USB 2.0 protector providing advanced ESD and short-circuit protection for USB data lines and power lines in automotive environments. It supports USB Hi-Speed (480Mbps), full-speed (12Mbps), and low-speed (1.5Mbps) operation, featuring high ESD protection up to +25kV air gap and +8kV contact discharge. The device includes a 500mΩ power switch, low Ron data switches, overcurrent autoretry, and operates within -40°C to +105°C. It safeguards against shorts, overvoltage, undervoltage, and thermal conditions, ensuring reliable USB connectivity in automotive and industrial applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX20046AGTCV automotive USB protector Specifications:
- Supports USB Hi-Speed (480Mbps), full-speed (12Mbps), low-speed (1.5Mbps)
- High ESD protection: +25kV air gap, +8kV contact discharge
- Input voltage range: VBUS 4.75V to 5.5V, IN 3.0V to 3.6V
- HVBUS protection trip threshold: 5.7V (typical)
- Overcurrent threshold: 50-150mA, adjustable via ISET
- On-resistance: 33Ω (typical)
- Thermal shutdown at 165°C with 15°C hysteresis
- Operating temperature: -40°C to +105°C

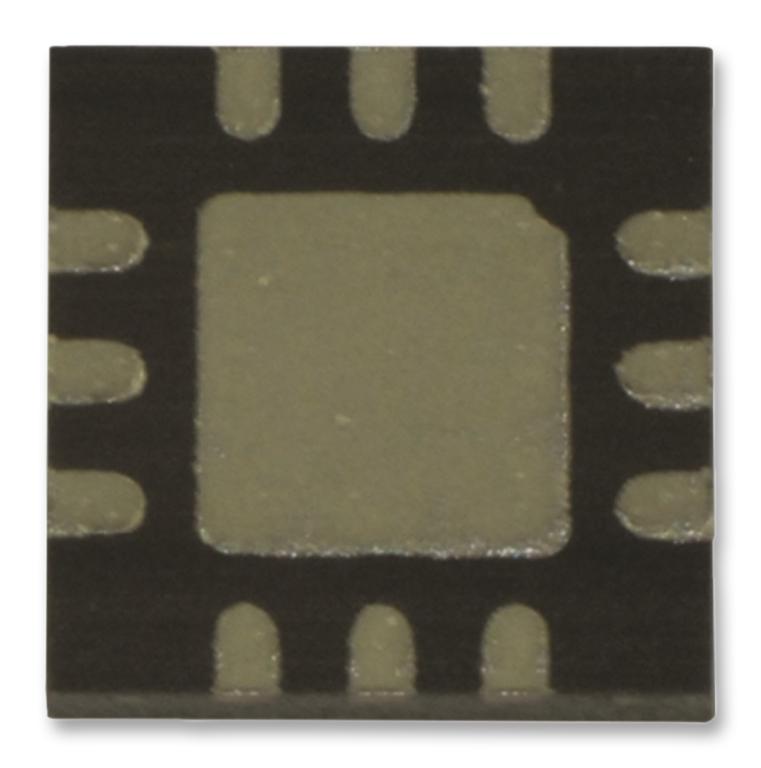

- Package: 12 TQFN, 3mm x 3mm
- Includes enable input, fault indicator, and integrated overcurrent autoretry
- Transient overvoltage and short-to-ground protections on USB lines
- Designed for automotive USB and industrial connectivity protection
Buy the Maxim MAX20046 – Reliable Automotive USB Protection for Industrial Applications
Purchase the Maxim MAX20046 online today to ensure reliable, high-speed USB protection in automotive and industrial environments. This device offers comprehensive ESD and short-circuit protection, supporting all USB 2.0 speeds and operating temperatures from -40°C to +105°C. Its integrated overcurrent autoretry and fault indicators provide peace of mind, making it ideal for automotive radio, navigation, and connectivity systems. Order now for fast delivery and keep your systems protected with industry-grade reliability.
Get Maxim MAX20046 today—built for precision, high ESD protection, and long-lasting durability in automotive USB interfaces.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX20046AGTCV?
You can click on the BUY or RFQ button to purchase MAX20046AGTCV from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX20046AGTCV?
You can download the MAX20046AGTCV datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX20046AGTCV?
MAXIM INTEGRATED / ANALOG DEVICES
