MAXIM INTEGRATED / ANALOG DEVICES MAX1471ATJ+ Datasheet & Stock

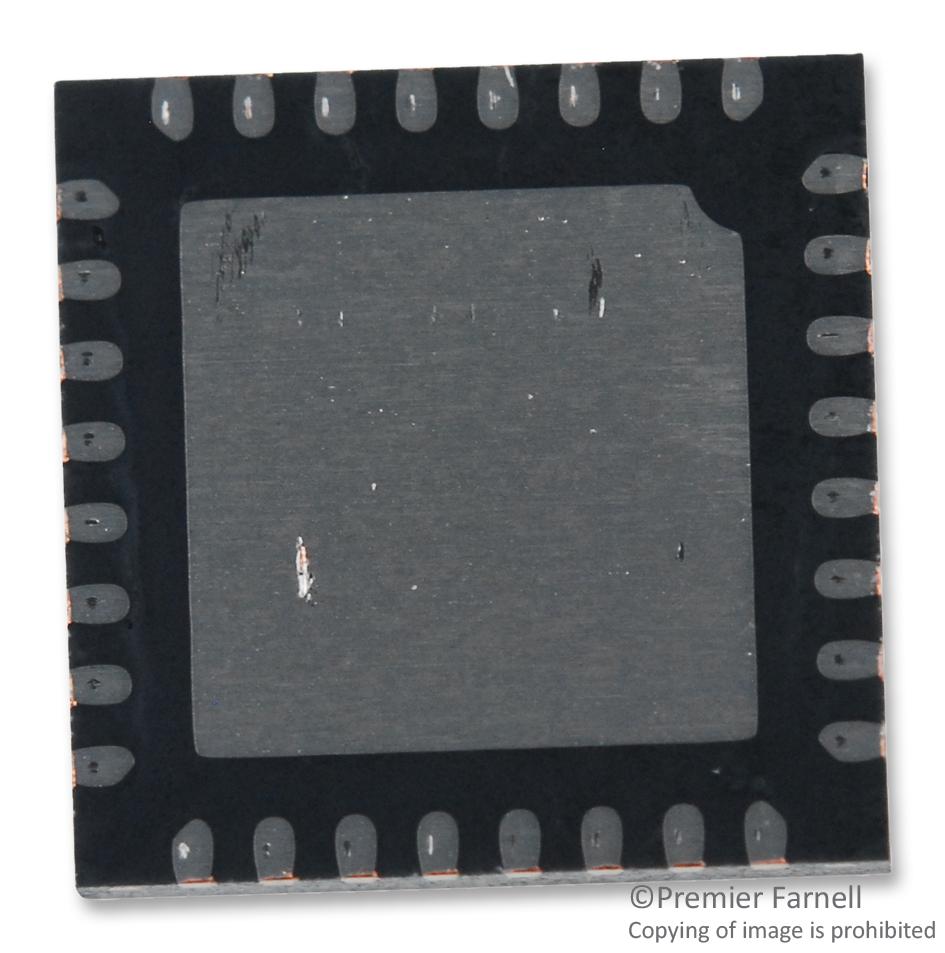

The MAX1471ATJ+ is a 315MHz/434MHz low power, 3V/5V ASK/FSK superheterodyne receiver in 32 pin TQFN package. This CMOS dual channel receiver and few external components provides complete ASK/FSK receive chain from antenna to digital output data. Depending on signal power and component selection, data rates as high as 33Kbps using manchester code (66kbps nonreturn to zero) can be achieved. It is designed to receive binary FSK or ASK data on a 300MHz to 450MHz carrier without reconfiguring the device or introducing any time delay normally associated with changing modulation schemes. ASK modulation uses a difference in amplitude of carrier to represent logic 0 and logic 1 data. FSK uses difference in frequency of carrier to represent a logic 0 and logic 1. It includes a low noise amplifier, an image reject mixer, a fully integrated PLL, local oscillator , 10.7MHz IF limiting amplifier with received signal strength indicator, low-noise FM demodulator and a 3V voltage regulator.




Supply voltage range is 4.5V to 5.5V, on-chip 3V regulator for 5V operation

Specified over automotive -40°C to +125°C temperature range

ASK and FSK demodulated data on separate outputs

Low operating supply voltage down to 2.4V

Low operating supply current of 7mA continuous receive mode & 1.1µA deep-sleep mode

Discontinuous receive (DRX) low power management

Fast-on start-up feature

45dB integrated image rejection, RSSI output and high dynamic range with AGC

RF input sensitivity, ASK of -114dBm & FSK of -108dBm

Selectable IF BW with external filter, programmable through serial user interface





Applications


Building Automation,

Automation & Process Control,

Communications & Networking,

Wireless,

Security
