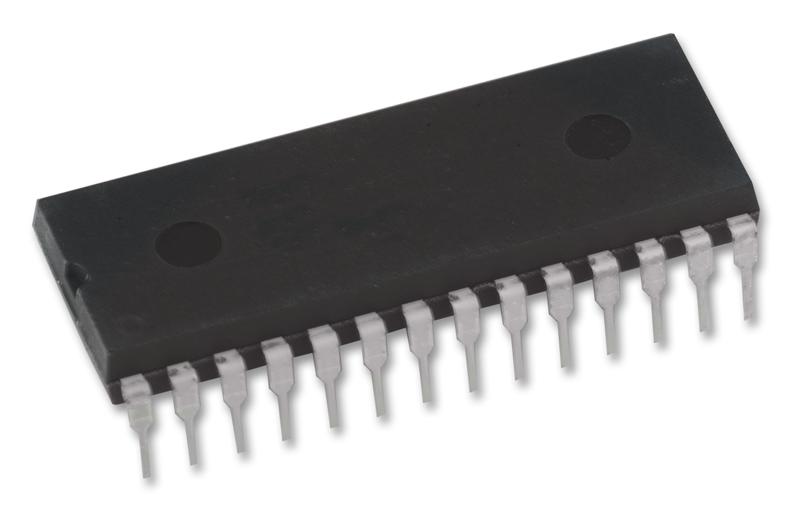

MAXIM INTEGRATED / ANALOG DEVICES DG506ACJ 16-Channel Analog Switch
The DG506ACJ is a 16-channel CMOS analog switch in a 28-pin DIP, offering low power consumption and break-before-make switching. It operates over ±4.5V to ±18V and features latch-up proof construction, making it ideal for portable and high-reliability applications. With bidirectional, symmetrical operation and TTL/CMOS compatibility, it supports switch control with an enable input. Its robust design ensures reliable operation even with input signals present during power-off. Suitable for control systems, data acquisition, and signal routing, this device provides superior performance and versatility in analog switching circuits.
MAXIM INTEGRATED / ANALOG DEVICES DG506ACJ 16-Channel Analog Switch Specifications:
- Channels: 16 single-ended, Bidirectional operation
- Package: 28-pin DIP
- Supply Voltage Range: ±4.5V to ±18V
- Operating Temperature: 0°C to 70°C
- Break-Before-Make Switching: Yes
- Latch-up Proof Construction: Yes
- Low Power Consumption: Yes
- Input/Output Type: Analog, Bidirectional
- Logic Compatibility: TTL and CMOS
- Power Dissipation: Derived from package and temperature
- Pin Compatibility: Harris, Siliconix, Renesas devices
- Designed for Control, Data Logging, Signal Routing, and Acquisition Systems
- Voltage Range: ±4.5V to ±18V
- Reliable switching with protection against latch-up during power-off
Buy the Buy Maxim DG506ACJ Part Number 16-Channel CMOS Analog Multiplexer Online
Acquire the Maxim DG506ACJ 16-channel CMOS analog multiplexer online for dependable signal routing and data acquisition. This low-power device features break-before-make switching, latch-up proof design, and wide supply voltage support. Its bidirectional, symmetrical operation ensures versatile performance across applications requiring high reliability and minimal power consumption. Compatible with TTL and CMOS logic, it fits seamlessly into control systems, portable devices, and instrumentation. Purchase online today and improve your project's performance with this robust, easy-to-integrate analog switching solution.
Order your Maxim Series DG506ACJ today and enhance your control systems with reliable, low-power analog multiplexing for portable and industrial applications.
