MAXIM INTEGRATED / ANALOG DEVICES MAX1490BCPG RS-485/RS-422 Transceiver
The MAX1490BCPG is a fully isolated, high-speed RS-485/RS-422 transceiver designed for industrial communication networks. It features full-duplex communication capability, robust electromagnetic interference minimization through slew-rate limiting, and high-voltage isolation of up to 2000V. Suitable for automation systems, building controls, and data acquisition, it supports data rates up to 2.5Mbps with low power consumption in a compact 24-pin DIP package. The device provides fault protection, fail-safe features, and optimized performance for reliable, long-distance data transmission over twisted pair cables.
MAXIM INTEGRATED / ANALOG DEVICES MAX1490BCPG RS-485/RS-422 Transceiver Specifications:
- Isolation Voltage: 2000VRms
- Data Rate: Up to 2.5Mbps (MAX1490A) or 250kbps (MAX1490B/C)
- Package: 24-Wide Plastic DIP
- Supply Voltage: +5V (logic side), isolated power optional
- Protection: Short-circuit, thermal shutdown
- Receiver Input Resistance: 12kΩ
- Receiver Differential Threshold: ±200mV
- Receiver Hysteresis: 70mV
- Propagation Delay: 100-275ns
- Skew Time: 25-160ns
- Operating Temperature: 0°C to +70°C (standard), -40°C to +85°C (extended)
- Power Dissipation: ~727mW (typical at 25°C)
- Shutdown Current: as low as 0.2μA
- Fail-safe Receiver: Guarantees known output when input is open
- Suitable for industrial, building control, and remote sensor applications

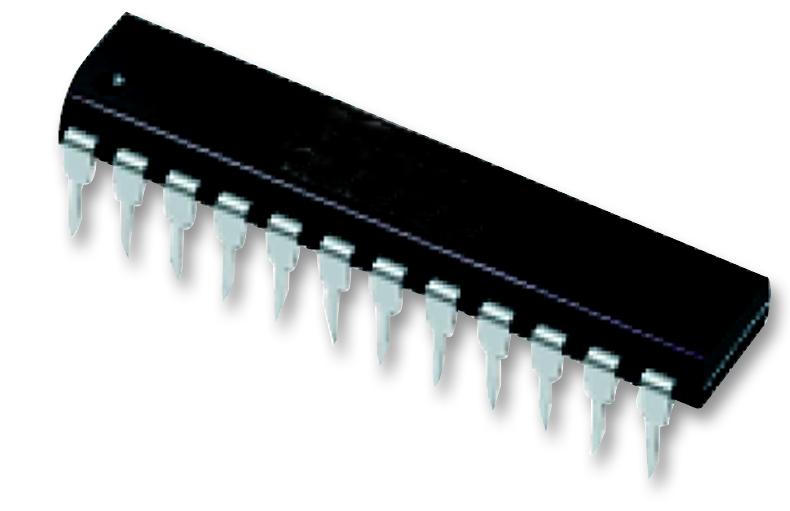

Buy the Maxim Series MAX1490BCPG: High-Speed Isolated RS-485/RS-422 Transceiver
Enhance your industrial communication systems with the Maxim MAX1490BCPG. This high-speed, full-duplex RS-485/RS-422 transceiver offers up to 2.5Mbps data rate, 2000V isolation, and low power consumption. Its robust design ensures reliable long-distance data transmission, minimizing EMI and reflections. Ideal for automation, building controls, and remote sensing applications, it guarantees safety, fault protection, and stable operation. Order online now to upgrade your network with this reliable and high-performance transceiver designed for demanding industrial environments.
Buy Maxim MAX1490BCPG now and experience unmatched reliability and performance for industrial data communication and automation systems.
