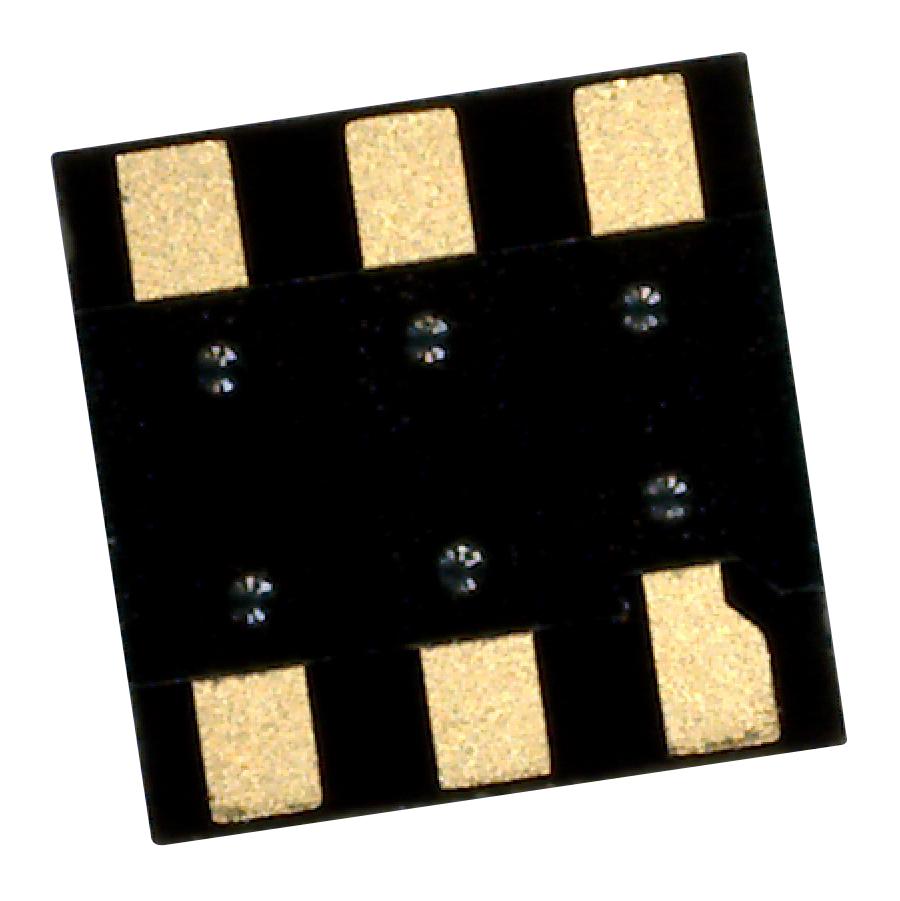

MAXIM INTEGRATED / ANALOG DEVICES MAX17225ELTT NanoPower Boost Converter
The MAX17225ELTT is an ultra-low quiescent current boost (step-up) DC-DC converter designed for battery-powered applications requiring long battery life and high efficiency. It features True Shutdown for disconnecting input and output, a 1A peak inductor current limit, and operates with an input voltage range from 400mV to 5.5V. The device includes a single resistor for output voltage setting, transient protection, and ultra-low power consumption, making it ideal for wearables, medical equipment, and IoT sensors. It is available in compact packages and supports a wide temperature range.
MAXIM INTEGRATED / ANALOG DEVICES MAX17225ELTT NanoPower Boost Converter Specifications:
- Input Voltage Range: 400mV to 5.5V
- Output Voltage Range: 1.8V to 5V adjustable with 1% resistor
- Peak Inductor Current Limit: 1A
- Quiescent Current: 0.5nA in shutdown, typical 300nA in low power mode
- Switching Frequency: Up to 2.5MHz
- Package Options: WLP 6-pin, uDFN 6-pin
- Thermal Resistance, Junction to Ambient (WLP): 223.6°C/W
- Operating Temperature Range: -40°C to +85°C
- Synchronous Boost, True Shutdown, Ultra-Low Power Consumption
- Input Capacitance: 10μF ceramic recommended
- Output Capacitance: Minimum 2μF, typical 10μF ceramic
- Efficiency: Up to 95% at best load conditions
- _ENABLE Pin: Active high for enable control, low current leakage
- Control scheme: Fixed on-time pulse-frequency modulation (PFM)
- Reverse Current Blocking: Yes
Buy the Maxim MAX17225ELTT – Reliable Boost for Industrial Applications
Discover the MAX17225ELTT now—an ultra-low quiescent current boost converter with True Shutdown for long-lasting battery applications. Its compact design, adjustable output, and high efficiency make it perfect for wearables, medical devices, and IoT sensors. Designed for operation from as low as 400mV input, it supports a wide voltage range up to 5.5V, ensuring reliable power management. With minimal quiescent current and various package options including WLP and uDFN, this device ensures your portable device achieves optimal runtime and performance. Order online today to enhance your power solutions and achieve cutting-edge efficiency.
Get Maxim MAX17225ELTT today—built for ultra-low power efficiency and reliable performance in portable and wearable devices.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX17225ELTT?
You can click on the BUY or RFQ button to purchase MAX17225ELTT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX17225ELTT?
You can download the MAX17225ELTT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX17225ELTT?
MAXIM INTEGRATED / ANALOG DEVICES
