MAXIM INTEGRATED / ANALOG DEVICES MAX15007BATTV Voltage Regulator

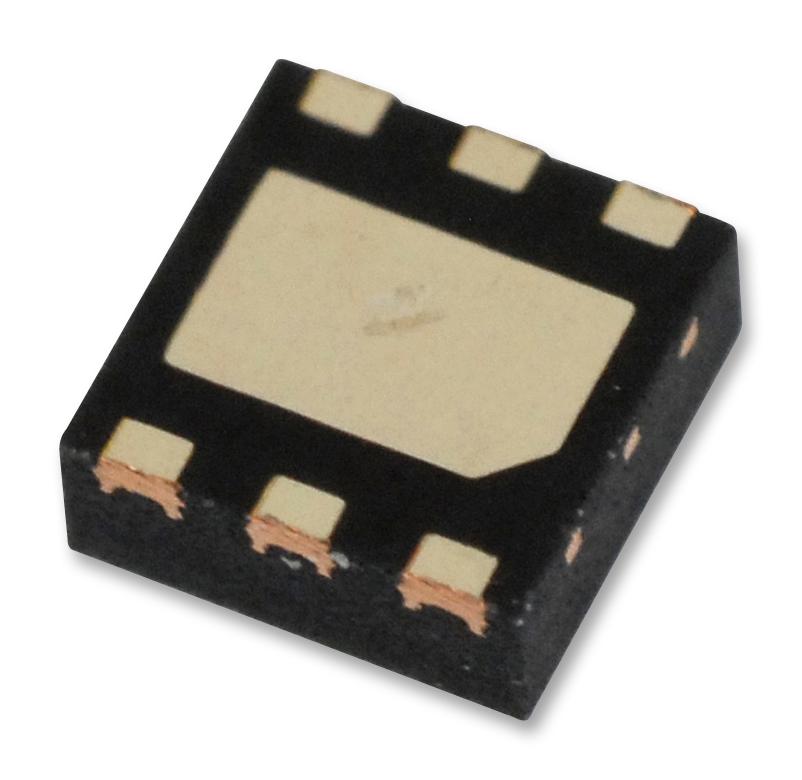

The MAX15007BATTV is an ultra-low quiescent-current linear voltage regulator designed for automotive and battery-powered applications. Operating from 4V to 40V input, it provides a fixed 5V output or an adjustable output from 1.8V to 10V using an external resistive divider. The device features a low dropout voltage of 300-600mV, thermal shutdown, short-circuit protection, and an enable input for on/off control, making it suitable for maintaining stable voltage in automotive systems, tire-pressure monitoring, industrial, telecom, and networking applications. Compact in a thermally enhanced 6-pin TDFN package, it guarantees 50mA load capacity with high efficiency and reliability over -40°C to +125°C temperature range.
MAXIM INTEGRATED / ANALOG DEVICES MAX15007BATTV Voltage Regulator Specifications:
- Input Voltage Range: 4V to 40V
- Output Voltage: Fixed 5V or Adjustable 1.8V–10V
- Output Current: Guaranteed 50mA
- Dropout Voltage: 300-600mV (at 50mA load)
- Quiescent Current: 10µA (no load), 90µA (full load)
- Thermal Shutdown: Yes
- Short-circuit Protection: Yes
- Operating Temperature Range: -40°C to +125°C
- Package: 6-pin TDFN, 8-pin SO
- Load Dump Voltage Tolerance: 45V
- Enable Input: Yes (MAX15007)
- Power Dissipation (Package Dependent): TDFN up to 1.9W, SO up to 1.5W at 70°C
- Features: Low Dropout Voltage, Short-Circuit Protection, Thermal Shutdown, Automotive Qualified
Buy the Buy MAXIM Integrated MAX15007BATTV Part Number MAX15007BATTV Online
Purchase the MAXIM MAX15007BATTV online today and enjoy a compact, efficient, and reliable low-dropout linear regulator specially designed for automotive and industrial applications. Featuring adjustable output from 1.8V to 10V, guaranteed 50mA load capacity, low quiescent current, thermal shutdown, and short-circuit protection, this device ensures stable power delivery over -40°C to +125°C operating temperatures. Ideal for tire-pressure monitoring, industrial automation, telecom, and networking systems, it comes in thermally enhanced packages for easy integration and high performance in demanding environments.
Order your MAXIM Integrated MAX15007BATTV series low-noise linear regulator today and ensure reliable voltage regulation with low quiescent current for automotive systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX15007BATTV?
You can click on the BUY or RFQ button to purchase MAX15007BATTV from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX15007BATTV?
You can download the MAX15007BATTV datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX15007BATTV?
MAXIM INTEGRATED / ANALOG DEVICES
