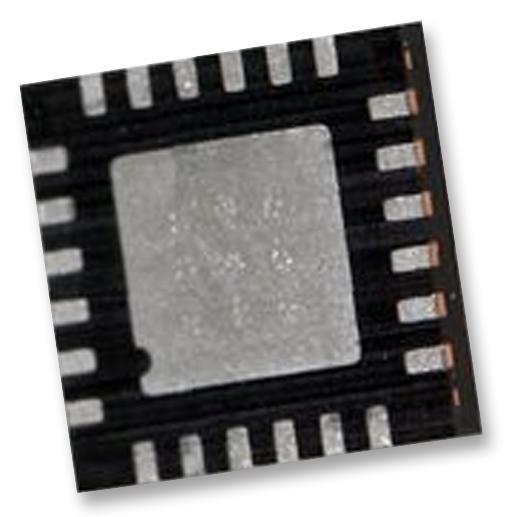

MAXIM INTEGRATED / ANALOG DEVICES MAX16030TG Voltage Supervisory Circuit
The MAX16030TG+ is a quad voltage supervisory circuit packaged in a 24-pin TQFN. It provides flexible voltage monitoring with both fixed and adjustable thresholds that can be selected via logic inputs. The device offers sequence timing controlled through small external capacitors. It monitors multiple voltage inputs, asserting corresponding outputs high after a set delay when voltages exceed their thresholds, and asserting outputs low when voltages fall below the thresholds. Each independent output features a push-pull configuration. Additionally, it includes a reset function that is asserted only after all monitored voltages exceed their thresholds. The reset timeout can be fixed internally or adjusted externally. The device operates from 2.2V to 28V, with an operating temperature range of -40°C to 125°C. It supports fixed thresholds for 3.3V, 2.5V, 1.8V, 1.5V, and 1.2V systems, and offers adjustable thresholds with 1.5% accuracy down to 0.5V. Fixed thresholds have a 2.7% accuracy over temperature. The circuit provides minimum delay timing of 140ms, with options for manual reset and tolerance selection (5% or 10%). It features nine logic-threshold options and can be configured as four separate supervisory circuits or used in a daisy chain for power supply sequencing.
MAXIM INTEGRATED / ANALOG DEVICES MAX16030TG Voltage Supervisory Circuit Specifications:
- Supply Voltage Range: 2.2V to 28V
- Operating Temperature Range: -40°C to 125°C
- Reset Timeout: 140ms fixed or externally adjustable
- Output Configuration: Push-pull, four independent outputs
- Monitored Voltages: 4 (can be daisy-chained or separate)
- Thresholds: Fixed for 3.3V, 2.5V, 1.8V, 1.5V, 1.2V; Adjustable with 1.5% accuracy
- Delay Timing: Minimum 140ms, capacitor-controlled
- Manual Reset: Yes, with debounce option
- Tolerance Settings: 5% or 10% via logic inputs
- Package: 24-pin TQFN
- Operating Temperature: -40°C to 125°C
Buy the Buy MAXIM MAX16030TG Online
Order the MAXIM MAX16030TG online today to ensure reliable voltage monitoring and sequencing capabilities. This quad supervisory circuit supports fixed and adjustable thresholds, offering flexible delay timing and reset options. Its push-pull outputs enable easy integration into complex multivoltage systems, making it ideal for servers, networking equipment, and industrial applications. With operating voltage from 2.2V to 28V and a robust temperature range from -40°C to +125°C, this device guarantees high performance and durability for demanding electronic systems.
Get MAXIM MAX16030TG today—built for precision and long-lasting durability in power supply supervision.
