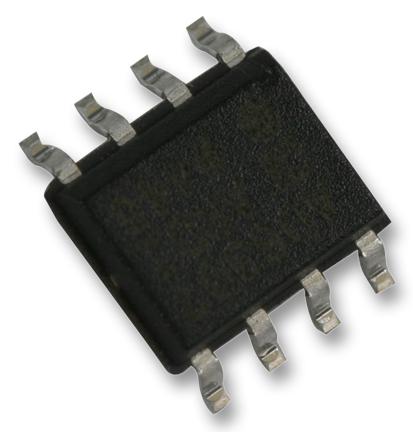

MAXIM INTEGRATED / ANALOG DEVICES MAX1658ESA Low-Dropout Regulator
The MAX1658ESA is a low-dropout linear regulator designed for portable and communication devices, supporting applications like cell phones, PDAs, modems, and handheld instruments. It features a wide input voltage range of 2.7V to 16.5V, provides up to 350mA output current, and offers fixed 3.3V or 5V preset outputs or adjustable voltages from 1.25V to 16V. Its integrated features include thermal shutdown, current limiting, reverse-battery protection, and low quiescent current for extended battery life, making it ideal for compact, portable electronics requiring reliable power regulation.
MAXIM INTEGRATED / ANALOG DEVICES MAX1658ESA Low-Dropout Regulator Specifications:
- Input Voltage Range: 2.7V to 16.5V
- Output Voltage: 1.25V to 16V or preset 3.3V / 5V
- Maximum Output Current: 350mA
- Dropout Voltage: MAX1658 650mV at 350mA
- Operating Temperature Range: -40°C to +85°C
- Shutdown Current: 1μA max
- Supply Current: 30μA typical at no load
- Thermal Shutdown Temperature: 165°C
- Package: 8-pin SO, high-power (1.2W)
- Reverse-Battery Protection: Yes
- Output Noise: 25mVp-p (10Hz to 100kHz)
- Line Regulation: 0.05% to 0.08%
- Load Regulation: 0.003%
- Enable Pin: SHDN logic high/low control
- External Feedback Resistors: Up to 500kΩ R2, for adjustable voltage
- Power Dissipation: Up to 1.2W in 8-pin SO package
- Reverse-battery voltage tolerance: -17V
- Transient Response: Load and line transient capability
Buy the Maxim Series MAX1658 Low-Dropout Regulator: MAX1658ESA
Order the Maxim MAX1658ESA online to benefit from efficient power management in portable devices. This low-dropout regulator offers adjustable voltage from 1.25V to 16V, supporting up to 350mA output current. It features thermal shutdown, reverse-battery protection, and low noise, ensuring reliable performance and extended battery life. Ideal for cell phones, PDAs, modems, and handheld instruments, it’s essential for compact, high-efficiency power regulation. Buy now for quick delivery and optimal device performance.
Get Maxim MAX1658ESA today—built for precision power regulation in portable electronics and communication devices.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX1658ESA?
You can click on the BUY or RFQ button to purchase MAX1658ESA from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX1658ESA?
You can download the MAX1658ESA datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX1658ESA?
MAXIM INTEGRATED / ANALOG DEVICES
