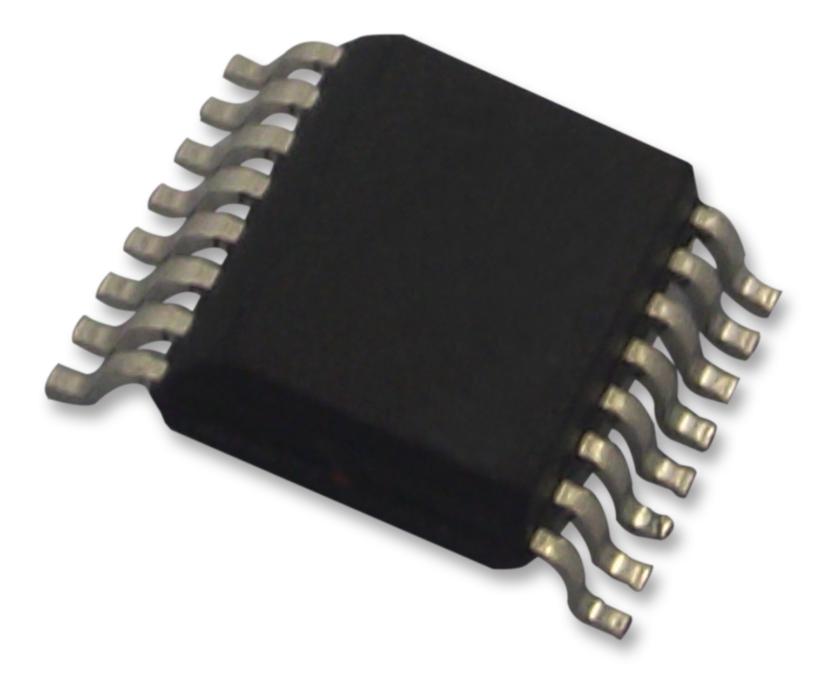

MAXIM INTEGRATED / ANALOG DEVICES MAX4700CAE Dual CMOS Analog Switch
The MAX4700CAE+ is a dual SPST CMOS analog switch with low on-resistance of 1.25Ω and matched resistance of up to 0.3Ω. It features flat resistance over the signal range, supporting rail-to-rail signals. Suitable for low-distortion applications, it replaces mechanical relays in test equipment, data acquisition, and communication systems. Operating from 4.5V to 30V or ±4.5V to ±20V, it handles both single and dual supplies. It includes one normally closed and one normally open switch, with TTL/CMOS compatible control inputs, high ESD protection, low leakage current, and break-before-make switching, ensuring high reliability and low power consumption.
MAXIM INTEGRATED / ANALOG DEVICES MAX4700CAE Dual CMOS Analog Switch Specifications:
- On-Resistance: 1.25Ω max
- On-Resistance Match: 0.3Ω max
- On-Resistance Flatness: 0.3Ω max over signal range
- Supply Voltage Range: 4.5V to 30V, or ±4.5V to ±20V dual supplies
- Signal Handling: Rail-to-Rail
- Switch Type: One normally closed and one normally open
- Package: 16-pin SSOP
- Control Inputs: TTL/CMOS compatible
- ESD Protection: >2kV per method 3015.7
- Leakage Current: 5nA max at +85°C
- Break-before-make: Yes
- Operating Temperature: 0°C to 70°C
- Low Power Consumption: Yes
- Application: Data acquisition, automatic test equipment, communication systems, PABX systems
- Typical Transistor Count: 108
