MAXIM INTEGRATED / ANALOG DEVICES MAX17000AETGT DDR Memory Power Controller
The MAX17000A is a comprehensive power management solution for notebook DDR, DDR2, and DDR3 memory modules. It integrates a high-efficiency, proprietary Quick-PWM controller capable of handling wide input/output voltage ratios with load transient response within 100ns. Additionally, it features a source-sink linear regulator for the VTT termination rail, a reference buffer, and configurable output voltages from 1.0V to 2.5V. Suitable for memory supplies and high-performance applications, it offers robust protections including overvoltage, undervoltage, thermal, and current-limit safeguards, all in a compact 24-pin thin QFN package.
MAXIM INTEGRATED / ANALOG DEVICES MAX17000AETGT DDR Memory Power Controller Specifications:
- Input Voltage Range: 3V to 26V
- Output Voltages: Preset 1.8V, 1.5V or Adjustable 1.0V to 2.5V (line- and load-accuracy ±1%)
- Switching Frequency: 200kHz to 600kHz capable of high efficiency operation
- VTT Regulator Current: Peak source/sink +2A, deadband of 5mV
- Reference Buffer: +3mA sourcing/sinking current
- Protection Features: Overvoltage, undervoltage, thermal shutdown, valley current limit

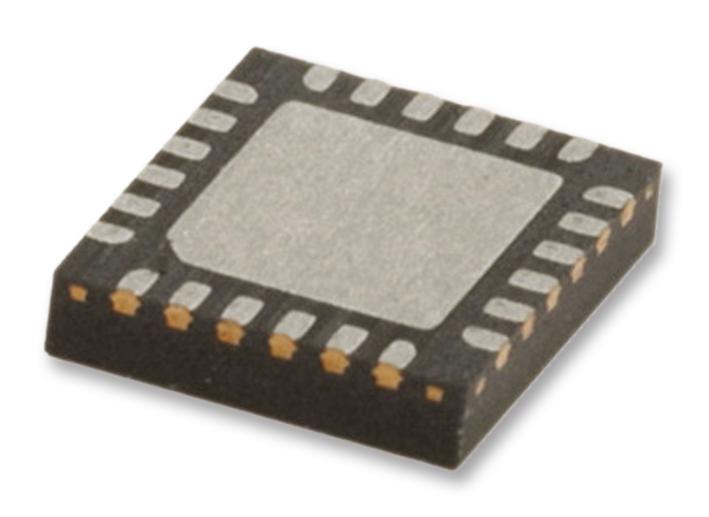

- Package: 24-pin thin QFN, dimensions 4mm x 4mm
- PWM Response: Load transient response within 100ns
- Regulation Accuracy: ±1% across line and load
- The device supports various modes: skip, forced-PWM, standby, soft-start, shutdown, with configurable soft-start times and fault response
- Includes multiple power-good signals, fault latch, and external reference controls for flexible memory power management
Buy the Buy Maxim Integrated MAX17000A Part Number MAX17000AETGT Online
Order the Maxim Integrated MAX17000A online today to power your notebook memory modules reliably. This advanced power management controller features high efficiency Quick-PWM architecture, configurable output voltages from 1.0V to 2.5V, and robust fault protections including overvoltage and thermal shutdown. Its compact 24-pin thin QFN package makes it ideal for space-constrained designs. Ensure stable DDR, DDR2, and DDR3 memory supply with precise regulation, fast transient response within 100ns, and an integrated VTT linear regulator delivering peak +2A current forMemory termination. Perfect for high-performance applications needing reliable, efficient, and flexible power solutions.
Get Maxim Integrated MAX17000A today—built for precision and long-lasting durability in notebook memory power management solutions.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX17000AETGT?
You can click on the BUY or RFQ button to purchase MAX17000AETGT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX17000AETGT?
You can download the MAX17000AETGT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX17000AETGT?
MAXIM INTEGRATED / ANALOG DEVICES
