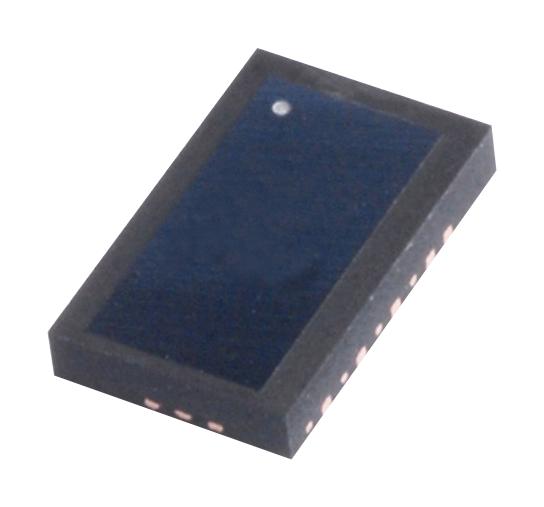

MAXIM INTEGRATED / ANALOG DEVICES VT1697SBFQ High-Current Voltage Regulator IC
The VT1697SB is a high-current smart slave IC designed for high-density multiphase voltage regulation in industrial applications. It offers accurate current and temperature monitoring via SMBus, integrated fault protection circuits including overtemperature, VX short, and UVLO/OVLO faults, and supports dynamic phase shedding and DCM modes for efficiency optimization. Packaged in an FCQFN with exposed thermal pads, it enables improved heat dissipation, making it ideal for high-power voltage regulators in microprocessor, memory, graphics, and networking applications. Its advanced packaging and protection features ensure reliable operation in demanding environments.
MAXIM INTEGRATED / ANALOG DEVICES VT1697SBFQ High-Current Voltage Regulator IC Specifications:
- Package: FCQFN 16-pin with exposed thermal pad
- Maximum Junction Temperature: 150°C
- Supply Voltage VppH to Vss: -0.3V to 2.5V
- Bias Supply Voltage Vpp. Veco: 1.71V to 1.98V
- Power-Train Input Voltage VpbH: 8.5V to 14.0V
- Operating Temperature Range: -40°C to +125°C
- Switching Frequency: 300kHz to 1.3MHz
- Thermal Resistance Junction to Case: 0.42°C/W
- Peak VX Current: ±100A
- Vpp UVLO Threshold (Rising): 1.57 to 1.64V
- VppH OVLO Threshold (Rising): 16V
- Overtemperature Shutdown: 140°C to 165°C
- Current Gain (|_ to ISENSE): 95000 to 105000
- Temperature sensor gain: 3.01 mV/°C, range 0-150°C
- Fault signals: TS_FAULT asserts low on fault detection
- Minimal external components: bootstrap capacitor, Vop, Voc, and decoupling capacitors
Buy the Maxim VT1697SB – Reliable Current and Temperature Monitoring for Industrial Applications
Enhance your power management system with the Maxim VT1697SB, a high-current smart slave IC designed for industrial-grade multiphase voltage regulation. It offers precise current and temperature sensing, integrated fault protection, and supports dynamic phase control for optimal efficiency. Packaged in a compact FCQFN with an exposed thermal pad for superior heat dissipation, it is ideal for microprocessors, graphics, memory, and networking applications. Ensure reliable operation with this advanced component that simplifies high-power system design and enhances thermal management.
Get Maxim VT1697SB today—built for high-power efficiency and robust fault protection in multiphase voltage regulation systems.
