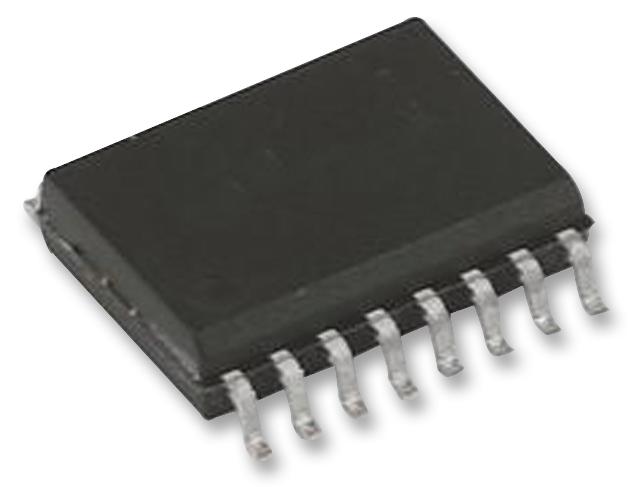

MAXIM INTEGRATED / ANALOG DEVICES MAX170DCWE 12-bit ADC
The MAX170DCWE+ is a high-speed 12-bit successive approximation analog-to-digital converter featuring a serial output interface, on-chip buried Zener reference, and fast 5.6μs conversion time. Ideal for digital signal processing and telecommunication applications, it offers low drift performance with minimal external components, operates within a 0°C to 70°C temperature range, and consumes only 135mW of power. Its compatibility with serial-to-parallel converters and DSPs makes it suitable for precise, low-noise measurement systems, ensuring reliable operation across varied industrial environments.
MAXIM INTEGRATED / ANALOG DEVICES MAX170DCWE 12-bit ADC Specifications:
- Resolution: 12 bits
- Conversion Time: 5.6μs
- Interface: Serial, 3-wire with leader bit and 12 data bits (MSB first)
- Power Supply: 4.75V to 5.25V (typical 5V), Negative Voltage: -15V to -12V
- Power Consumption: 135mW
- Temperature Range: 0°C to 70°C
- Input Voltage Range: 0V to 5V (unipolar operation)
- Reference: On-chip buried Zener diode with <1% drift
- External Components: Supply and reference decoupling capacitors only
- Package: 16-pin WSOIC
- Features: High-speed DAC, accurate comparator, suitable for DSP and serial-to-parallel conversion
- Error Margin: ±1LSB
- Operating Mode: Self-start and external clock driven
- Application: Signal processing, telecommunication, industrial measurement
Buy the Maxim Integrated MAX170DCWE+ – Reliable 12-bit ADC for Industrial Applications
Enhance your measurement systems with the MAX170DCWE+, a high-speed 12-bit ADC offering a conversion time of just 5.6 microseconds. Its on-chip buried Zener voltage reference ensures minimal drift, providing accurate and reliable performance across industrial temperature ranges. Compatible with serial-to-parallel converters and digital signal processors, this low-power device is ideal for telecommunication, signal processing, and automation systems. Easily integrable with minimal external components and housed in a compact 16-pin WSOIC package, it boosts your system's precision and efficiency. Order now online for fast delivery and reliable operation.
Buy Maxim Integrated MAX170DCWE+ now and experience fast, precise analog-to-digital conversion for demanding industrial signal processing.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX170DCWE?
You can click on the BUY or RFQ button to purchase MAX170DCWE from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX170DCWE?
You can download the MAX170DCWE datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX170DCWE?
MAXIM INTEGRATED / ANALOG DEVICES
