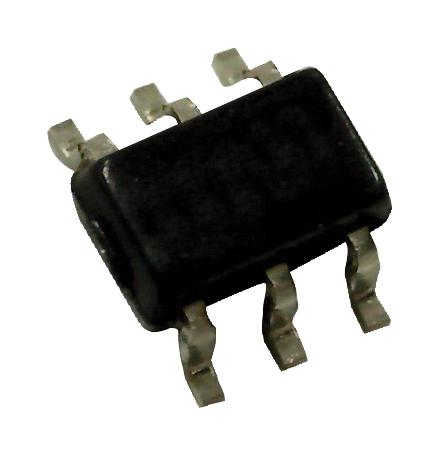

MAXIM INTEGRATED / ANALOG DEVICES MAX1522EUTT Boost Controller
The MAX1522/MAX1523/MAX1524 are compact, easy-to-use boost controllers designed for a variety of DC-DC conversion applications, including step-up, SEPIC, and flyback. They feature fixed on-time control, high efficiency over wide voltage ranges, and minimal external components, making them ideal for low-cost consumer electronics such as PDAs and digital cameras. Available in a 6-pin SOT23 package, these devices incorporate soft-start, output fault protection, and pin-selectable duty cycles, ensuring reliable power regulation in space-constrained designs.
MAXIM INTEGRATED / ANALOG DEVICES MAX1522EUTT Boost Controller Specifications:
- Package: 6-pin SOT23
- Operating Voltage Range: +2.5V to +5.5V
- Quiescent Current: 25µA typical
- On-Time Options: 0.5µs or 3µs (pin-selectable)
- Maximum Duty Cycle: 45% (0.5µs on-time), 80-90% (3µs on-time)
- Output Current Range: up to 1000:1 efficiency, load varies by application
- Soft-Start Duration: 3.2ms fixed
- Fault Protection: Short-circuit, output fault detection (latched for MAX1524)
- Input Voltage: 2.5V to 5.5V, capable of bootstrap operation
- Thermal Rating: 696mW at +70°C, -40°C to +85°C operating temperature
- High switching frequency: up to 909kHz depending on load
- Efficiency: Over 80%, adjustable through external components
