MAXIM INTEGRATED / ANALOG DEVICES MAX17292EVKIT Boost Converter Module
The MAX17292 evaluation kit is a fully assembled, tested PCB featuring a 16W DC-DC boost converter designed for battery-powered, harsh environments. It operates from 3V to 8V, providing up to 8V at 2A, with features like dynamic output adjustment, external clock synchronization, two-phase operation, cycle-by-cycle current limiting, hiccup mode, and thermal shutdown. The compact design includes proven PCB layout and thermal management, making it ideal for front-end preboost applications in demanding conditions, supporting reliable power regulation and EMI optimization with spread spectrum technology.
MAXIM INTEGRATED / ANALOG DEVICES MAX17292EVKIT Boost Converter Module Specifications:
- Input Voltage Range: 3V to 8V
- Maximum Output Voltage: 16V
- Output Power: 16W
- Output Current: up to 2A
- Switching Frequency: 2.2MHz
- Efficiency: 87% at 5V input
- Line Transient Voltage Tolerance: 16V
- Features: External clock sync, spread spectrum EMI, cycle-by-cycle current limit, hiccup mode, thermal shutdown
- PCB Size: 1240 mil x 1040 mil (0.775 sq. in.)
- Thermal and PCB Layout: 4-layer, proven thermal design
- Protection: Thermal shutdown, cycle-by-cycle current limiting
- Operation Modes: Normal, bootstrap, two-phase configuration
- Power Supply Compatibility: 3V to 8V DC input
- Device Package: TQFN 12-pin
- Output Regulation Range: 4V to 16V

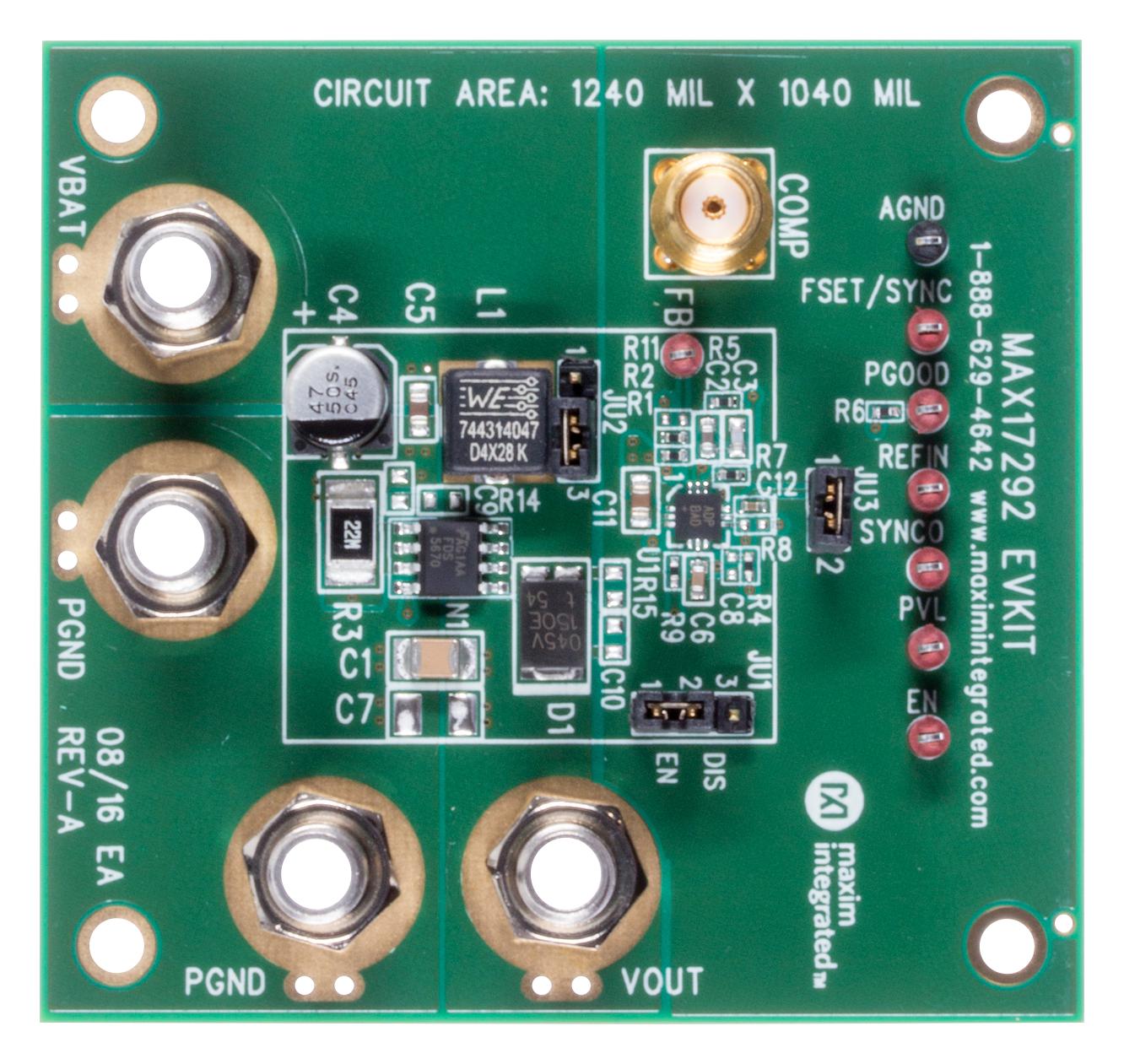

Buy the Maxim Series MAX17292 Boost Converter: MAX17292EVKIT
Get the MAX17292 evaluation kit today to experience high-efficiency power regulation for demanding battery-operated applications. This fully assembled, tested PCB offers a 16W boost converter with an output of up to 8V and 2A current capacity. It features optional external clock synchronization, dynamic voltage adjustment, thermal shutdown, and cycle-by-cycle current limiting, making it suitable for harsh environments. Its compact 4-layer design provides excellent thermal performance and EMI optimization, ensuring reliable operation in front-end preboost power supplies and other critical electronic projects.
Order your Maxim Series MAX17292EVKIT today and equip your projects with a reliable, high-efficiency boost converter in a compact, ready-to-use evaluation kit.
