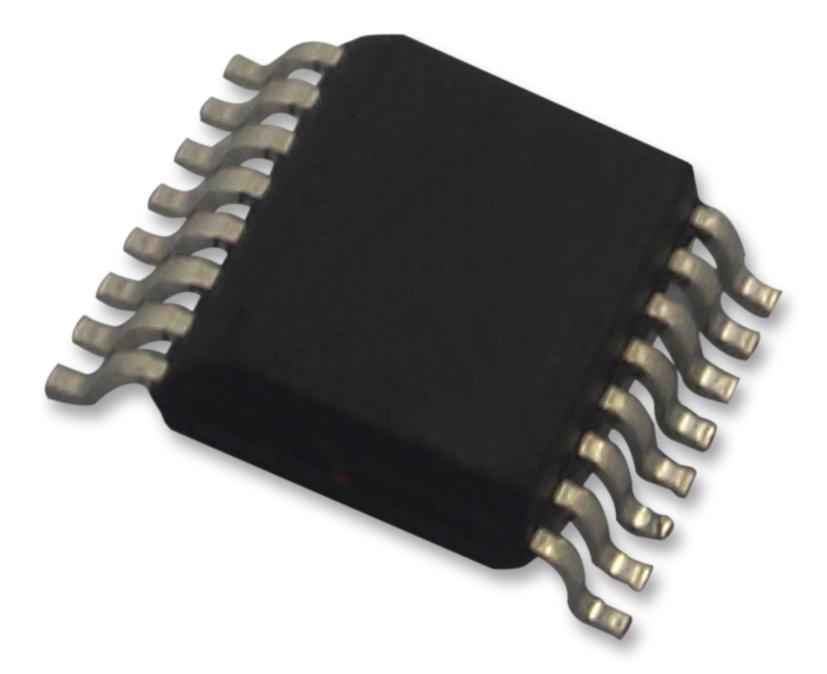

MAXIM INTEGRATED / ANALOG DEVICES MAX15005DAUEV Automotive Power Controller
The MAX15005 power-supply controller is designed for automotive applications, offering a wide input voltage range from 4.5V to 40V. It features high-performance current-mode PWM control, adjustable switching frequency from 15kHz to 500kHz, and integrated regulators for reliable operation during cold crank and load dump conditions. The device supports boost, flyback, and SEPIC topologies with protections including overvoltage, thermal shutdown, and hiccup current limit. Its compact package, wide temperature range, and synchronization capability make it ideal for automotive power management solutions.
MAXIM INTEGRATED / ANALOG DEVICES MAX15005DAUEV Automotive Power Controller Specifications:
- Input Voltage Range: 4.5V to 40V
- Operating Temperature Range: -40°C to +125°C
- Package Type: 16 TSSOP-EP
- Oscillator Frequency: 15kHz to 1MHz (programmable)
- Maximum Duty Cycle: 50% (MAX15004), adjustable for MAX15005
- Switching Frequency Accuracy: 4%
- UVLO Threshold Voltage: 3.15V to 3.75V
- Output Voltage Set Point (REGS): 4.75V to 5.05V
- Internal Regulators: Vcc at 7.4V, REGS at 5V ± 2%
- Peak Current Limit Threshold: 305mV
- Error Amplifier Gain: 100dB
- Protection Features: Overvoltage, thermal shutdown, hiccup mode
- Power Dissipation: up to 1.7W @ 70°C in thermally enhanced package
- Input Bias Current: 0.5μA (ON/OFF), 10-20nA (shutdown)
- Soft-Start Duration: configurable via external capacitor
- Synchronization: External clock input, compatible from 102% of internal frequency
Buy the Maxim Integrated MAX15005 – Reliable Automotive Power Controller for Industrial Applications
Order the Maxim Integrated MAX15005 online today and benefit from its wide voltage range, advanced protections, adjustable frequency, and compact design tailored for automotive and industrial applications. This controller ensures efficient, stable power supply operation, even under harsh conditions like cold crank and load dump, providing peace of mind and long-term reliability for your electronic systems.
Buy Maxim Integrated MAX15005 now and experience unmatched reliability and high-performance in automotive power management solutions.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX15005DAUEV?
You can click on the BUY or RFQ button to purchase MAX15005DAUEV from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX15005DAUEV?
You can download the MAX15005DAUEV datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX15005DAUEV?
MAXIM INTEGRATED / ANALOG DEVICES
