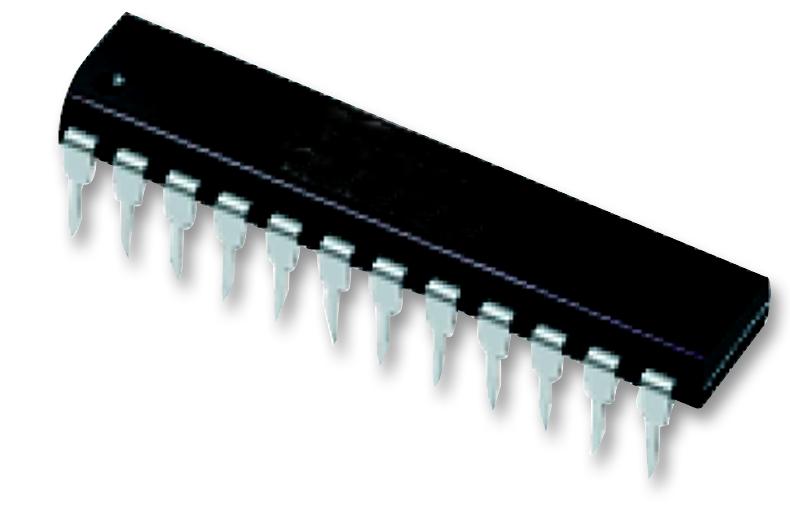

MAXIM INTEGRATED / ANALOG DEVICES MAX172BCNG 12-bit CMOS ADC
The MAX172BCNG+ is a full 12-bit CMOS analog-to-digital converter in a 24-pin DIP package, offering a fast 10µs conversion time and low-noise, low-drift voltage reference. Designed for high-speed data acquisition and precision processing, it features a built-in buried zener reference, requiring only minimal external components like decoupling capacitors. It supports a standard microprocessor interface with three-state outputs controlled by read and chip select signals, providing 75ns data access times. Suitable for digital signal processing, process control, electromechanical systems, and other high-accuracy applications, it operates at 4.75V to 5.25V in environments from 0°C to 70°C and consumes up to 215mW.
MAXIM INTEGRATED / ANALOG DEVICES MAX172BCNG 12-bit CMOS ADC Specifications:
- Resolution: 12 Bits
- Conversion Time: 10µs
- Input Voltage Range: 0 to 5V
- Reference Voltage: On-chip buried zener reference
- Power Supply Voltage: 4.75V to 5.25V
- Power Consumption: Max 215mW
- Operating Temperature Range: 0°C to 70°C
- Input Current: 38mA at 5V
- Data Access Time: 75ns
- Pin Configuration: 24-pin DIP package
- Linearity: ±1 LSB
- Interface: Microprocessor-compatible with read, chip select
- Package Type: DIP
Buy the Maxim MAX172BCNG – Reliable 12-Bit ADC for Industrial Applications
Purchase the Maxim MAX172BCNG today online to ensure your high-speed data processing projects benefit from precise, reliable conversion with low noise and minimal external components. Its 10-microsecond conversion time, built-in voltage reference, and microprocessor interface make it ideal for digital signal processing, process control, and electromechanical systems. With a maximum power consumption of 215mW and operation within 0°C to 70°C, this ADC guarantees high performance for demanding industrial and automation applications. Order now for immediate delivery and enhanced system reliability.
Buy Maxim MAX172BCNG now and experience unmatched reliability and high-speed data acquisition for advanced industrial applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX172BCNG?
You can click on the BUY or RFQ button to purchase MAX172BCNG from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX172BCNG?
You can download the MAX172BCNG datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX172BCNG?
MAXIM INTEGRATED / ANALOG DEVICES
