MAXIM INTEGRATED / ANALOG DEVICES MAX77816EVKIT Buck-Boost Regulator Kit

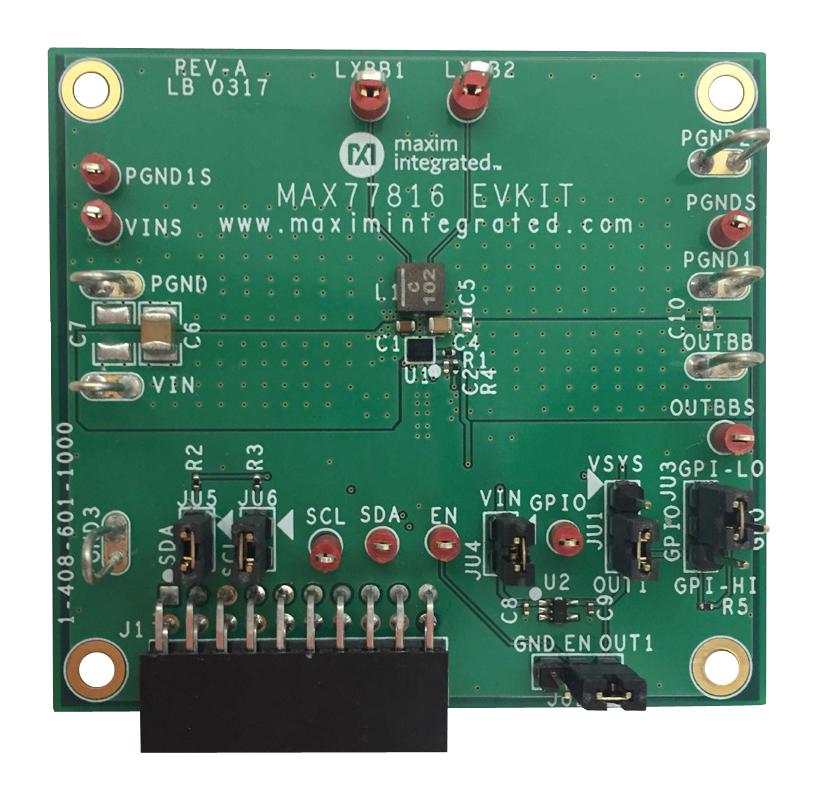

The MAX77816 evaluation kit from Maxim Integrated is a fully assembled and tested printed circuit board designed for evaluating the MAX77816 high-current, high-efficiency buck-boost regulator. This IC supports seamless transition between buck and boost modes, with input voltage ranging from 2.3V to 5.5V and adjustable output voltage from 2.60V to 5.14V in 20mV steps. It provides a minimum continuous output current of 3A, with burst capability up to 3.6A for 800µs, making it suitable for single-cell Li-ion battery-powered applications. The kit includes a USB to I2C communication module for easy control via a Windows GUI, which allows dynamic voltage adjustment and feature testing. Its high efficiency, low quiescent current, and safety features such as soft-start, thermal shutdown, and short-circuit protection make it ideal for portable devices like smartphones, tablets, sensors, wearable gadgets, RF power amplifiers, and wireless communication devices. The compact size (1.827mm x 2.127mm) with a 20-bump WLP package facilitates integration into space-constrained applications.

View MAX77816EVKITDatasheet [pdf]

Buy the Maxim MAX77816 – Reliable Buck-Boost Regulator for Industrial Applications

Enhance your designs with the MAX77816 buck-boost regulator evaluation kit. Featuring seamless mode transitions, adjustable output from 2.60V to 5.14V, and high efficiency up to 97.5%, this kit is perfect for portable electronic applications. Its compact, space-saving design with a 20-bump WLP package makes integration straightforward. Included USB I2C communication allows easy control and dynamic voltage setting via Windows GUI. Get it now to ensure reliable power management in smartphones, tablets, sensors, wearables, RF amplifiers, and wireless communication devices, boosting your development efficiency.

Buy Maxim MAX77816 evaluation kit now and experience unmatched efficiency and portability for battery-powered systems.
