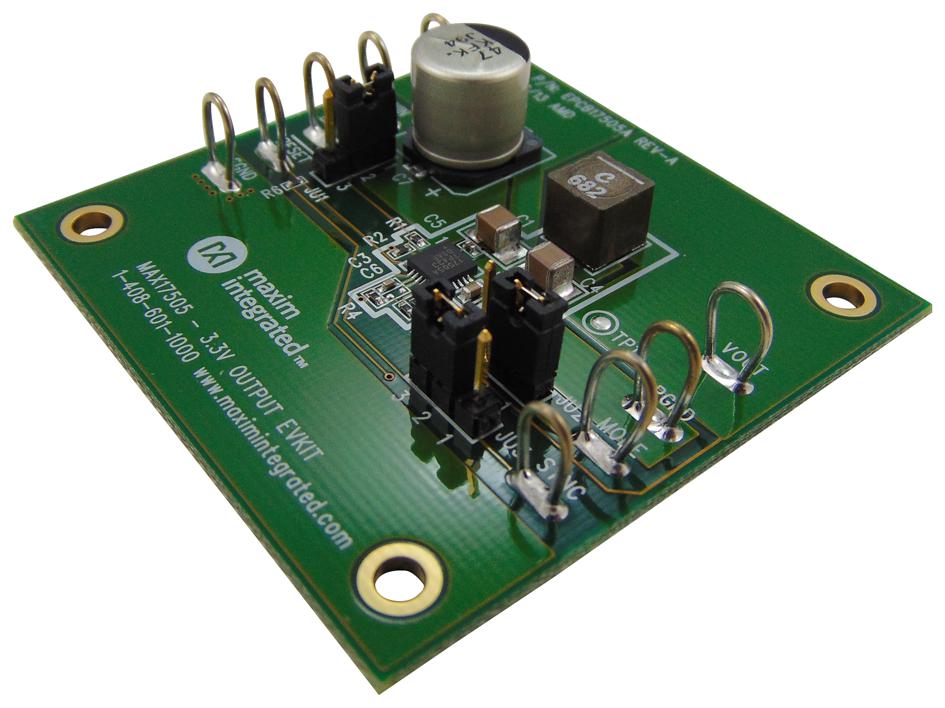

MAXIM INTEGRATED / ANALOG DEVICES MAX17505EVKITA DC-DC Converter Module
The MAX17505 3.3V output evaluation kit is a comprehensive test board designed to evaluate the high-efficiency, synchronous step-down DC-DC converter. It operates from 4.5V to 60V input, providing a stable 3.3V output at load currents up to 1.7A, with a switching frequency of 450kHz for excellent efficiency and compact component size. The kit includes adjustable soft-start, input UVLO, external synchronization, open-drain reset, and mode selection, making it suitable for power management solutions demanding high performance and flexibility.
MAXIM INTEGRATED / ANALOG DEVICES MAX17505EVKITA DC-DC Converter Module Specifications:
- Input Voltage Range: 4.5V to 60V
- Output Voltage: 3.3V
- Maximum Output Current: 1.7A
- Switching Frequency: 450kHz
- Soft-Start: Adjustable via external capacitor
- Enable/UVLO: Resistor programmable threshold
- External Synchronization: Supported via SYNC pin
- Modes of Operation: PWM, PFM, DCM via MODE pin
- Protection Features: Overcurrent and overtemperature protection
- Operation Temperature Range: Classified for typical industrial applications
- Component Type: Synchronous buck converter, tested PCB layout
- Package: Fully assembled and tested EV kit
Buy the Maxim Series MAX17505 DC-DC Converter: MAX17505
Purchase the Maxim MAX17505EVKITA today for a proven high-efficiency 3.3V step-down power solution. Designed for input voltages from 4.5V to 60V and capable of delivering up to 1.7A, this evaluation kit features a 450kHz switching frequency, adjustable soft-start, programmable UVLO, and mode selection—ideal for demanding power management applications. Compact, reliable, fully tested, and easy to integrate into your project, ensuring optimal performance in industrial, communications, and other electronic systems.
Get Maxim MAX17505EVKITA today—built for high efficiency, adjustable soft-start, and flexible power management solutions.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX17505EVKITA?
You can click on the BUY or RFQ button to purchase MAX17505EVKITA from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX17505EVKITA?
You can download the MAX17505EVKITA datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX17505EVKITA?
MAXIM INTEGRATED / ANALOG DEVICES
