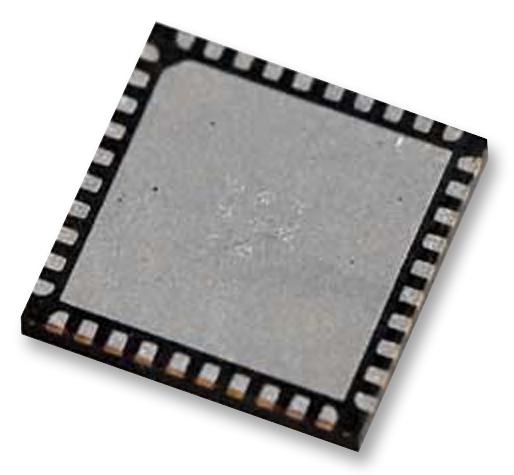

MAXIM INTEGRATED / ANALOG DEVICES MAX6954ATL LED Display Driver
The MAX6954ATL+ from Maxim Integrated is a compact, 40-pin TQFN LED display driver with I/O expansion and key scan capabilities, operating from 2.7V to 5.5V. It supports a 4-wire serial interface (SPI/QSPI) at 26MHz and features integrated functions for driving up to 16 digits of 7-segment, 14-segment, or 16-segment LED displays, as well as controlling up to 128 individual LEDs. The device includes built-in ASCII fonts for 14/16-segment displays and a hexadecimal font for 7-segment displays, along with multiplex scan circuitry, LED drivers, and static RAM for digit storage. It offers automatic segment blinking, brightness control with 16 levels, low power shutdown mode, and low EMI slew rate drivers, making it suitable for applications such as set-top boxes, panel meters, white goods, bar graph displays, and audio/video equipment.
MAXIM INTEGRATED / ANALOG DEVICES MAX6954ATL LED Display Driver Specifications:
- Package: 40-pin TQFN-EP
- Supply Voltage Range: 2.7V to 5.5V
- Serial Interface: SPI/QSPI-compatible at 26MHz
- Supports: Up to 16 digits of 7-, 14-, or 16-segment LED displays
- Controls: Up to 128 discrete LEDs or combinations
- Fonts: 104-character ASCII for 14/16-segment, Hexadecimal for 7-segment
- Features: Automatic blinking, 16-step brightness control, low power shutdown, slew-rate limited drivers
- Applications: Set-top boxes, panel meters, white goods, bar graph, audio/video equipment
