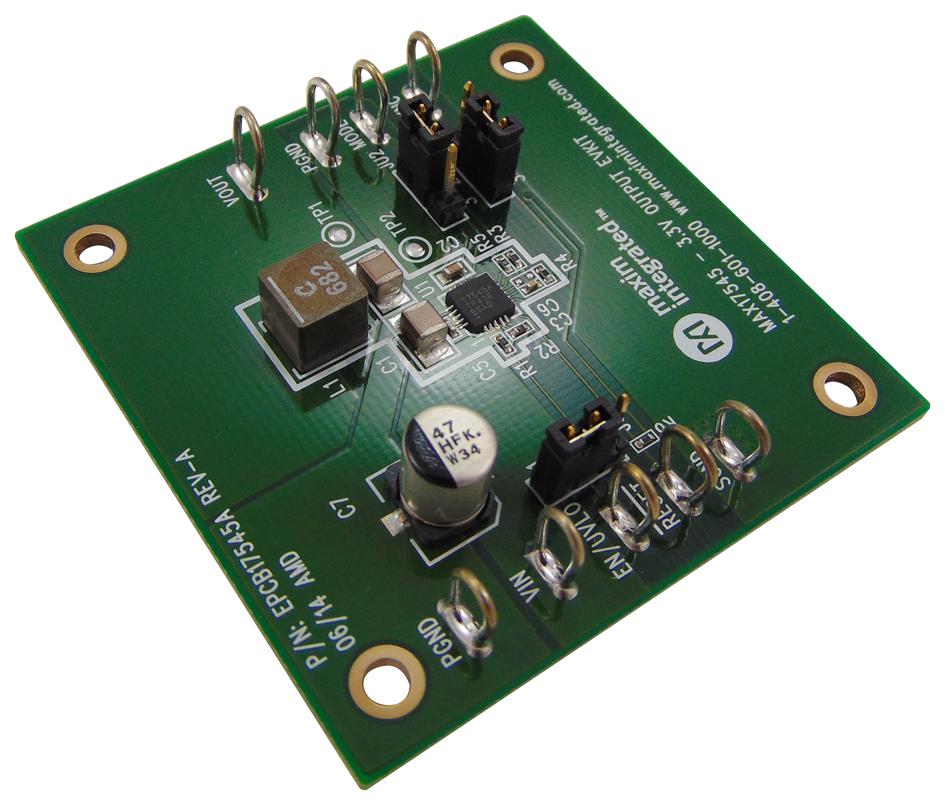

MAXIM INTEGRATED / ANALOG DEVICES MAX17545EVKITA High-Voltage Buck Converter
The MAX17545 high-voltage, high-efficiency synchronous step-down DC-DC converter evaluation kit provides a reliable platform for testing and optimizing 3.3V output applications from input voltages ranging 4.5V to 42V. It delivers up to 1.7A load current at a switching frequency of 450kHz, enabling compact design with high efficiency. Features include adjustable undervoltage lockout, soft-start, open-drain reset, and external synchronization. Fully assembled, tested, and ideal for evaluating performance parameters for industrial and embedded power supply designs.
MAXIM INTEGRATED / ANALOG DEVICES MAX17545EVKITA High-Voltage Buck Converter Specifications:
- Input Voltage Range: 4.5V to 42V
- Output Voltage: 3.3V
- Maximum Output Current: 1.7A
- Switching Frequency: 450kHz
- Enable/UVLO threshold: Resistor-Programmable
- Soft-Start Time: Adjustable via external capacitor
- Mode Selection: PWM, PFM, DCM via MODE pin
- External Synchronization: Yes, on SYNC pin
- Output Capacitors: 2.2uF and 4.7uF ceramic
- Inductor: 6.8μH
- Test Pads: Yes for monitoring output regulation
- Thermal & Overcurrent Protection: Yes
- PCB: Fully assembled and proven layout
- Component List: Includes ceramic capacitors, inductor, resistors, test pads, and PCB
Buy the Maxim Series MAX17545 High-Voltage Buck Converter: MAX17545EVKITA
Enhance your power supply designs with the Maxim Series MAX17545 evaluation kit, offering a proven 3.3V output, adjustable UVLO, soft-start, and synchronization. Compact and efficient, it supports input voltages from 4.5V to 42V and delivers up to 1.7A load current at 450kHz switching frequency. Fully assembled, tested, and featuring a proven PCB layout, this kit simplifies evaluation and integration for industrial, automotive, and embedded applications. Order online today and accelerate your development process with confidence.
Order your Maxim Series MAX17545EVKITA high-efficiency buck converter evaluation kit today and experience reliable performance in your power management projects.
