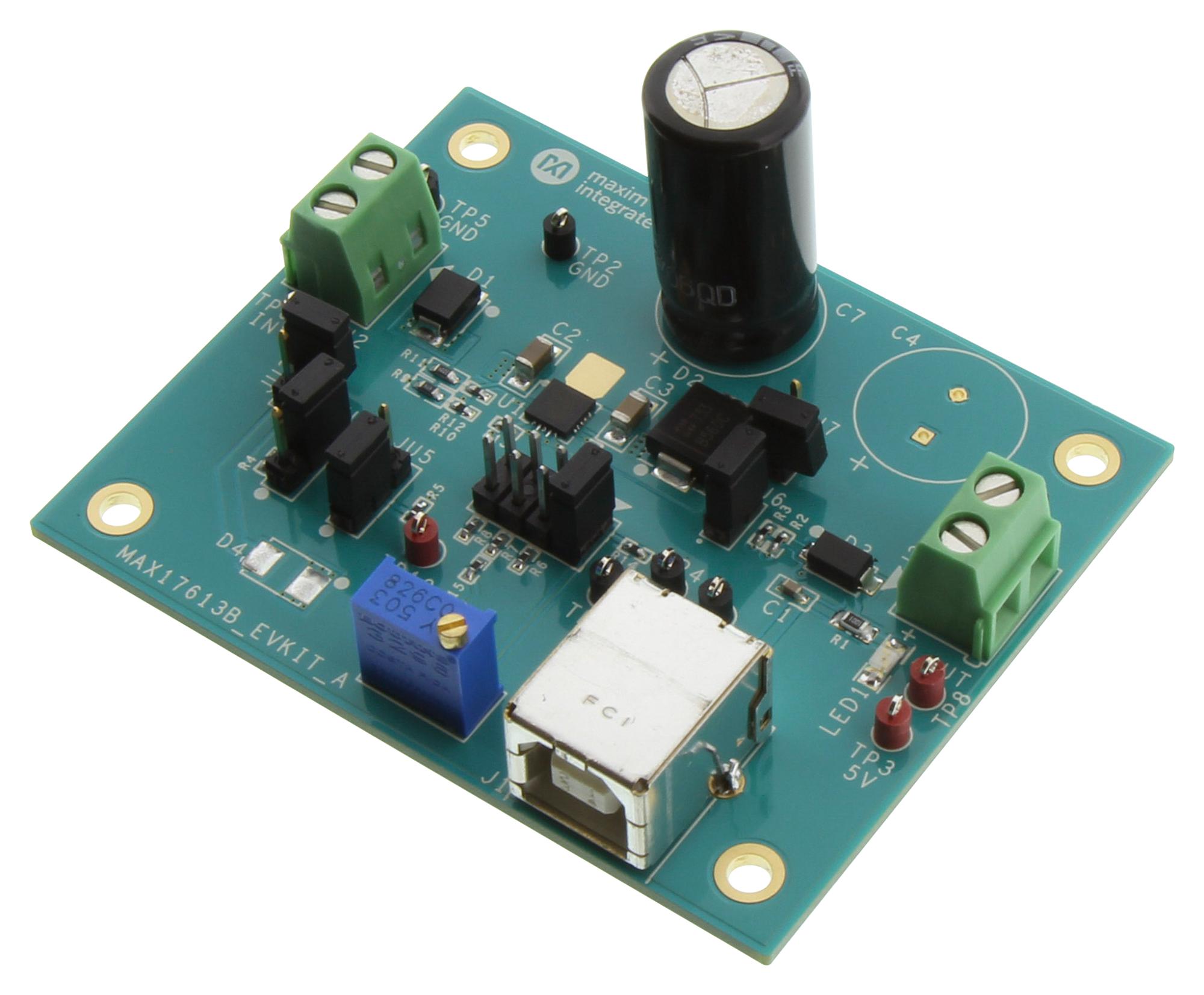

MAXIM INTEGRATED / ANALOG DEVICES MAX17613BEVKIT Voltage Protector Kit
This evaluation kit for the MAX17613B provides a comprehensive testing platform for a voltage range of 4.5V to 60V with a current capacity of up to 3A. It features a 40V TVS diode across the input and a Schottky diode at the output for enhanced protection. The kit allows evaluation of undervoltage lockout (UVLO), overvoltage lockout (OVLO), and various current limiting functions, with configurable UVLO set at 4.5V and OVLO at 36V. It includes jumper-configurable current limit settings, a programmable start-up blanking time, and fault indication signals. The PCB layout is proven, and the kit is fully assembled and tested for ease of use.
MAXIM INTEGRATED / ANALOG DEVICES MAX17613BEVKIT Voltage Protector Kit Specifications:
- Operating Voltage Range: 4.5V to 60V
- Maximum Current: 3A
- Overvoltage (OVLO) Threshold: 36V
- Undervoltage (UVLO) Threshold: 4.5V
- Input Protection: 40V TVS Diode, Schottky Diode
- Programmable Startup Blanking Time: Yes
- Current Limit Adjustment: Jumper-configurable from 0.15A to 3A
- Fault Indication Signals: UVOV, FLAG
- Component Ratings: TVS Diode: 40V, Schottky Diode: 60V, Capacitors and Resistors as per detailed BOM
- Assembly: Fully assembled and tested PCB layout
- Features: Configurable UVLO and OVLO, multiple current limit types (Autoretry, Continuous, Latchoff), Proven PCB layout
Buy the Buy MAXIM MAX17613BEVKIT Evaluation Kit for Voltage Protection Online
Purchase the MAXIM MAX17613BEVKIT evaluation kit online today and streamline your testing of overvoltage and undervoltage protection circuits. This fully assembled PCB allows for easy evaluation of adjustable UVLO and OVLO thresholds, configurable current limits, and fault signals, ensuring comprehensive testing capabilities. Designed for engineers and technicians, it guarantees accurate results and fast deployment. Take advantage of the proven layout and high-quality components to simplify your development process and ensure reliable circuit operation. Order now and enhance your voltage protection solutions.
Order your MAXIM MAX17613BEVKIT evaluation kit today and enjoy reliable voltage protection testing for your projects with proven performance and easy setup.
