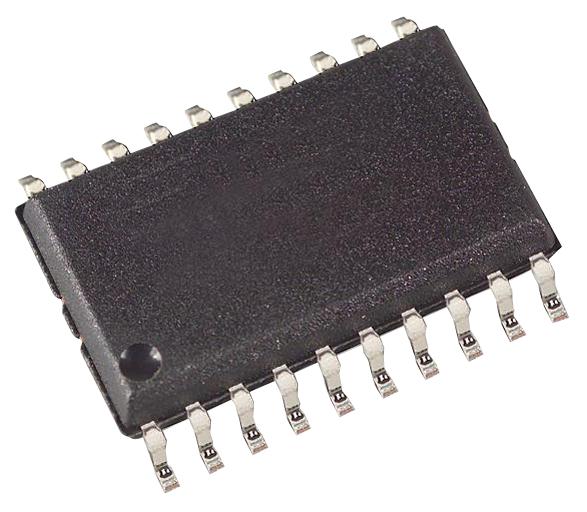

MAXIM INTEGRATED / ANALOG DEVICES MAX506BEWP Quad DAC
The MAX506BEWP+ is a quad 8-bit DAC housed in a 20-pin WSOIC package, providing rail-to-rail outputs and operating on a single +5V or dual ±5V supplies. Internal buffers swing rail-to-rail with factory calibration ensuring ±1.5 LSB linearity, offset, and gain errors over the full temperature range. It features separate input latches for each DAC, selectable via address inputs A0 and A1, updated with the active-low WR signal, sharing a common reference input. Suitable for applications like arbitrary waveform generation, test equipment, digital offset/gain adjustment, and programmable attenuation, it requires no external calibration and supports TTL/CMOS logic compatibility. With a supply current of about 5mA, a 0.7 V/µs slew rate, and 6 µs settling time, its zero code error is 16 mV, with a full-scale error of 14 mV, operating from -40°C to 85°C, making it ideal for precise analog signal processing in industrial environments.
MAXIM INTEGRATED / ANALOG DEVICES MAX506BEWP Quad DAC Specifications:
- Package: 20-pin WSOIC
- Resolution: 8 Bits
- Output Voltage Range: Rail-to-Rail
- Power Supply: +5V single or dual ±5V supplies
- Input Reference Range: Includes both supply rails
- Linearity Error: ±1.5 LSB (factory calibrated)
- Zero Code Error: 16 mV at code 00 hex
- Full-Scale Error: 14 mV at code FF hex
- Settling Time: 6 µs
- Slew Rate: 0.7 V/µs
- Supply Current: Approximately 5 mA
- Operating Temperature: -40°C to 85°C
- Input Latches: Four, independently controlled via A0 and A1
- Input Interface: Parallel, TTL/CMOS compatible
- Reference Input: Shared among all DACs, with internal precision buffers
- Applications: Signal generation, test equipment, automation, digital gain/offset adjustment, industrial systems
Buy the Maxim Series MAX506BEWP: Quad 8-Bit DAC Rail-to-Rail Output
Enhance your projects today with the Maxim MAX506BEWP, a high-precision quad 8-bit DAC offering rail-to-rail outputs and factory calibration for optimal performance. Designed for industrial and signal processing applications, it features separate input latches, shared reference inputs, and no external calibration needed. With a quick settling time of 6 microseconds, a slew rate of 0.7 V/µs, and low zero and full-scale errors, it ensures accurate and stable analog output, compatible with TTL and CMOS logic. Order now online for fast delivery and dependable reliability.
Order your Maxim MAX506BEWP today and enhance your industrial and signal processing projects with a reliable, high-accuracy digital-to-analog converter.
