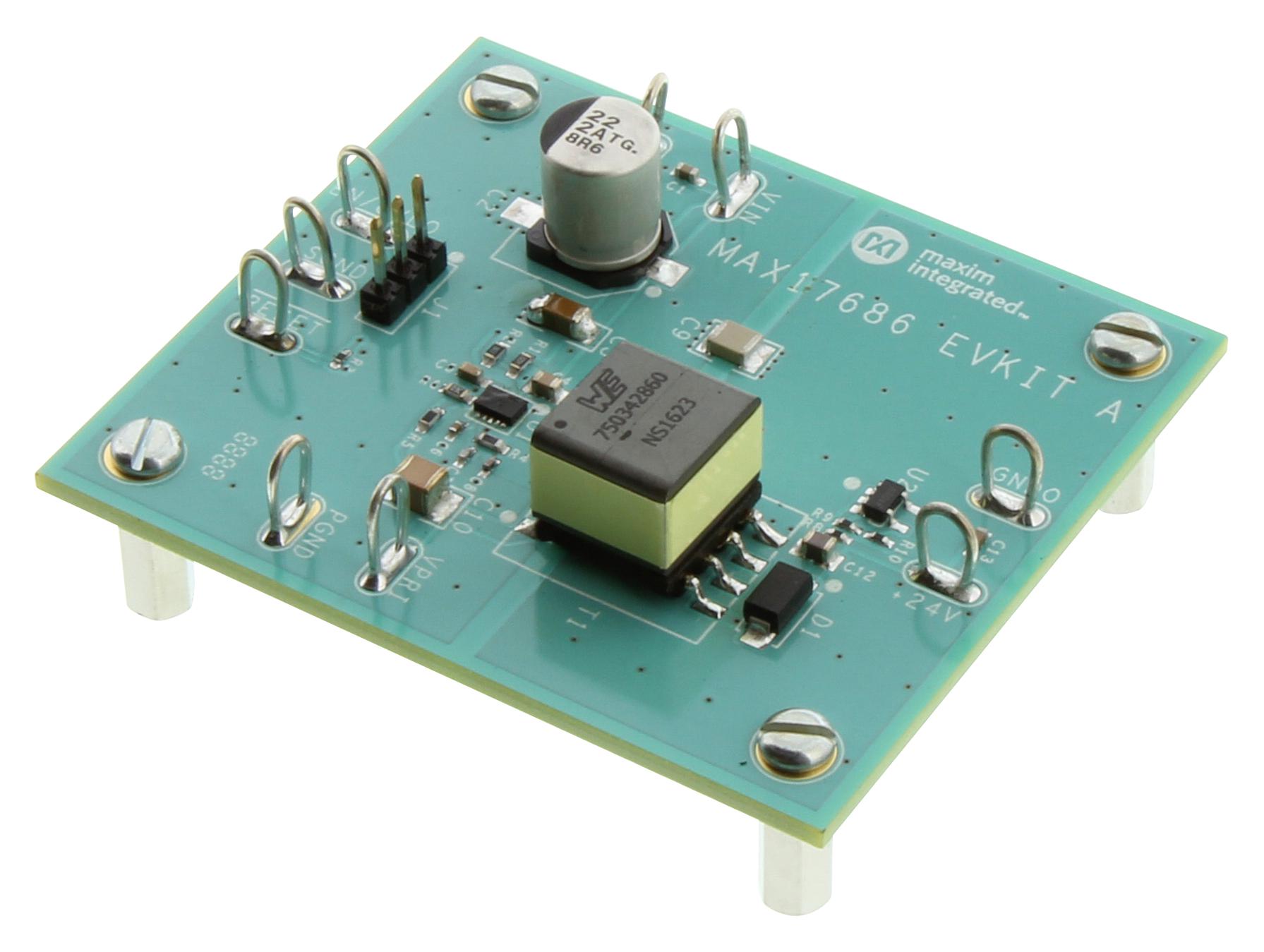

MAXIM INTEGRATED / ANALOG DEVICES MAX17686EVKITA isolated power supply
Evaluation kit for the MAX17686, designed for isolated 24V output configuration. It supports an input voltage range of 17V to 60V and provides a continuous 24V, 100mA output current. Features include an enable/undervoltage lockout (UVLO) input, a switching frequency of 200kHz, overcurrent and overtemperature protection, and compliance with CISPR22 (EN55022) Class B standards for conducted and radiated emissions. The kit delivers up to 2.4W of output power and does not include an optocoupler.
MAXIM INTEGRATED / ANALOG DEVICES MAX17686EVKITA isolated power supply Specifications:
- Input Voltage Range: 17V to 60V
- Output Voltage: +24V
- Output Current: 100mA
- Output Power: Up to 2.4W
- Switching Frequency: 200kHz
- Protection: Overcurrent, overtemperature
- Standards: CISPR22 Class B conducted and radiated emissions
- Protection Features: Enable/UVLO pin, robust short-circuit and health monitoring
- Features: No optocoupler, primary-side feedback, programmable soft-start
- PCB: Fully assembled and tested, proven layout
- Max Package: 10-pin TDFN
Buy the Maxim Series MAX17686 Isolated Power Supply: MAX17686EVKITA
Order the MAX17686EVKITA evaluation kit online today to instantly access a high-efficiency, isolated 24V power conversion solution. This fully assembled circuit offers protection features, EMI compliance, and supports a wide input voltage range from 17V to 60V. Perfect for applications requiring reliable, low-power isolated outputs without optocouplers. With a maximum output of 2.4W at 100mA, the kit also features programmable soft-start and robust protection mechanisms, ensuring safe operation and easy integration into your systems.
Buy Maxim MAX17686EVKITA evaluation kit now and experience reliable isolated power conversion with protected, EMI-compliant design.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX17686EVKITA?
You can click on the BUY or RFQ button to purchase MAX17686EVKITA from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX17686EVKITA?
You can download the MAX17686EVKITA datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX17686EVKITA?
MAXIM INTEGRATED / ANALOG DEVICES
