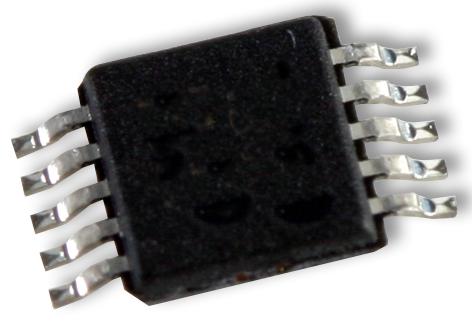

MAXIM INTEGRATED / ANALOG DEVICES MAX1910EUB+ Datasheet & Stock

The MAX1910EUB+ from Maxim Integrated Products is a 1.5x/2x high-efficiency white LED charge pump in 10 pin µMAX package. This is power LED with a regulated output voltage or current (up to 120mA) from an unregulated input supply (2.7V to 5.3V). It is complete DC-DC converter requiring only 4 small ceramic capacitors and no inductors. Input ripple is minimized by a unique regulation scheme that maintains a fixed 750KHz switching frequency over a wide load range. Also included are logic-level shutdown and soft-start to reduce input current surges at start-up. It has two automatically selected operating modes such as 1.5x and 2x. 1.5x mode improves efficiency at higher input voltages while 2x mode maintains regulation at lower input voltages. Typical applications include white LED backlighting, cellular phones, PDAs, digital still cameras, MP3 Players and backup-battery boost converters.




High-efficiency 1.5x/2x charge pumps, low input ripple with 750KHz operation

Operating temperature range from -40°C to 85°C

200mV current-sense threshold reduces power loss

Current or voltage regulated charge pump

Up to 120mA output current

No inductors required

Small ceramic capacitors

Regulated ±5% LED current

Load disconnected in shutdown

1µA shutdown current





Backup Battery Boost Converters; Cell Phones; Digital Still Cameras; MP3 Players; PDAs; White LED Backlighting





Applications


LED Lighting,

Portable Devices
