MAXIM INTEGRATED / ANALOG DEVICES MAX17852ACBV High-Voltage Battery Manager
The MAX17852 is a flexible high-voltage data acquisition system designed for battery management applications including EVs, HEVs, UPS, and energy storage systems. It features 14 differential cell inputs, integrated 12-bit ADCs, a high-voltage multiplexer, and robust thermal management with programmable balancing, diagnostics, and communication interfaces supporting UART, SPI, and I2C. Its advanced filtering, calibration, and high-efficiency charge pump enable accurate, noise-immune measurements across a wide temperature range, ensuring reliable battery monitoring for safety-critical systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX17852ACBV High-Voltage Battery Manager Specifications:
- Input Voltage Range: -2.5V to +65V per cell, total pack voltage up to 80V
- Number of Channels: 14 cell inputs plus 1 block and 4 auxiliary inputs
- ADC Resolution: 12-bit with oversampling up to 14-bit (16x oversampling)
- Sampling Rate: Up to 2 MSPS (at 16x oversampling)
- Communication: UART, SPI, I2C interfaces supporting daisy chaining and dual UART mode
- Power Supply: Vaa = 3.3 V, DCIN 9V to 65V, internal linear regulator, high-voltage charge pump
- Temperature Range: -40°C to +125°C operational, -55°C to +150°C storage
- Built-in diagnostics: voltage, temperature, current, calibration, fault detection, and safety alerts
- Cell balancing modes: manual, auto (by seconds or minutes), emergency discharge, group balancing
- Mechanical Package: 64-pin LQFP (10mm x 10mm)
- Communication Alerts: configurable via UART/SPI, with masking and status monitoring
- Safety Compliance: ASIL-D, supports FMEA for critical fault detection
- Additional features: internal references, programmable filters, digital signal processing, redundancy for safety-critical applications

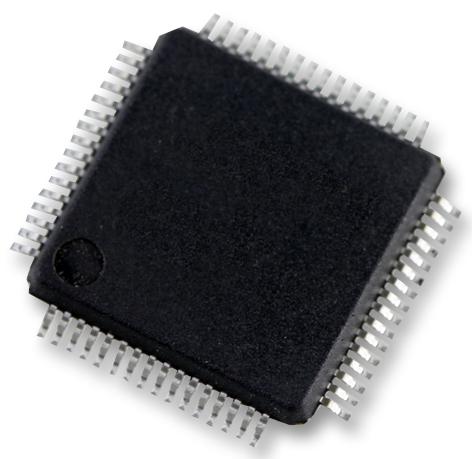

Buy the Buy MAXIM Integrated High-Voltage Battery Management Part Number MAX17852ACBV Online
Purchase your MAXIM MAX17852ACBV high-voltage data acquisition system today online. This advanced digital system offers 14 differential inputs, integrated precision ADCs, robust diagnostics, and programmable cell balancing for efficient battery management in EVs, HEVs, UPS, and energy storage. Its extended temperature range, high-speed communication, and safety features meet stringent ASIL-D requirements, ensuring dependable, accurate measurements for critical industrial applications. Buy now to enhance your energy system with maximum reliability and system safety.
Order your MAXIM MAX17852ACBV high-voltage system today and secure reliable, accurate battery monitoring for electric vehicle and energy storage projects.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX17852ACBV?
You can click on the BUY or RFQ button to purchase MAX17852ACBV from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX17852ACBV?
You can download the MAX17852ACBV datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX17852ACBV?
MAXIM INTEGRATED / ANALOG DEVICES
