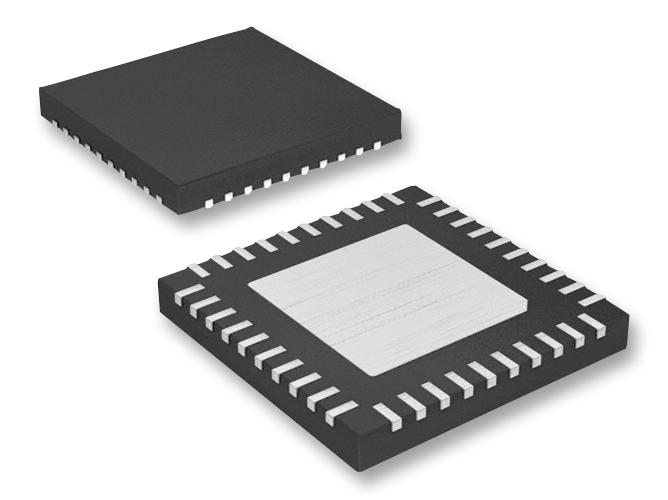

MAXIM INTEGRATED / ANALOG DEVICES MAX8770GTLT CPU Power Controller
The MAX8770 is a dual-phase, quick-PWM controller designed for IMVP-6+ CPU core power supplies. It offers precise voltage regulation, adaptive dead-time control, and extensive protection features including overvoltage, undervoltage, and thermal shutdown. Its out-of-phase operation reduces input ripple current and EMI, while programmable switching frequencies from 200kHz to 600kHz enable size and efficiency optimization. Ideal for notebook, desktop, and blade server applications, it supports multi-phase power delivery with fast transient response and flexible configuration options.
MAXIM INTEGRATED / ANALOG DEVICES MAX8770GTLT CPU Power Controller Specifications:
- Input Voltage Range: 45V to 55V
- Output Voltage Adjust Range: 0.8375V to 1.500V
- DC Output Regulation Error: ±50mV
- Switching Frequency: 200kHz to 600kHz (programmable)
- Peak Current Limit: 22.5mV valley threshold
- Minimum Off-Time: 375ns
- Thermal Shutdown Threshold: 160°C ±15°C hysteresis
- +5V Bias Supply: 4.5V to 5.5V
- Gate Drivers: Source/Sink currents up to 2.2A (high-side), 8A (low-side)
- Output Capacitor ESR Zero Frequency: <50kHz for stability
- Power Monitor Output: Proportional to CPU power dissipation
- Protection Features: Overvoltage, Undervoltage, Thermal fault, UVLO
- Package: Thin QFN 6mm x 6mm
- Operating Temperature: -40°C to +105°C
Buy the Maxim Integrated MAX8770 Reliable CPU Power Controller for IMVP-6+ Power Supplies
Purchase the Maxim MAX8770 online today for an advanced dual-phase, quick-PWM CPU power management solution. It features programmable switching frequencies from 200kHz to 600kHz, adaptive dead-time control, and comprehensive protection including overvoltage, undervoltage, and thermal shutdown. Designed for IMVP-6+ power supplies, it ensures efficient, stable operation in notebooks, desktops, and blade servers. Easy to integrate with flexible configurations for multi-phase delivery, this controller guarantees fast transient response while optimizing size and efficiency in demanding applications.
Get Maxim MAX8770 today—built for high-efficiency CPU core regulation with advanced protection features and flexible multiphase operation.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX8770GTLT?
You can click on the BUY or RFQ button to purchase MAX8770GTLT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX8770GTLT?
You can download the MAX8770GTLT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX8770GTLT?
MAXIM INTEGRATED / ANALOG DEVICES
