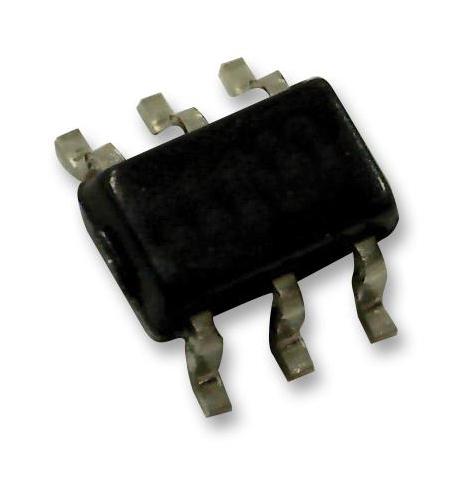

MAXIM INTEGRATED / ANALOG DEVICES MAX5711AUTT 10-bit DAC
The MAX5711 is a compact, low-power 10-bit digital-to-analog converter in a small 6-pin SOT23 package, suitable for portable and battery-powered devices. It features rail-to-rail output, operates from +2.7V to +5.5V, and includes an internal precision amplifier. The device supports fast 20MHz SPI-compatible serial interface, with a power-on reset to zero volts and three software-controlled power-down modes. Its low supply current of 85pA at 3V and stability over -40°C to +125°C make it ideal for automation, process control, and tuning applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX5711AUTT 10-bit DAC Specifications:
- Resolution: 10 Bits
- Operating Voltage Range: +2.7V to +5.5V
- Supply Current: 85pA at 3V
- Power-Down Current: 0.3pA
- Output Voltage Range: 0 V to Vpp (Vpp dependent on external reference)
- Output Impedance: 0.8Ω (Code=200 hex)
- DAC Settling Time: Less than 10μs (1/4FS to 3/4FS load)
- Output Buffer: Rail-to-rail capable, drives 5kΩ load with 200pF load
- Interface: 3-wire SPI/QSPI/MICROWIRE compatible at 20MHz
- Temperature Range: -40°C to +125°C
- Package: 6-pin SOT23
- Power-On Reset: Clears DAC output to zero on power-up
- Power-Down Modes: Three options (connected to GND via 100kΩ, 1kΩ, or high impedance)
- Input Voltage: CMOS compatible logic levels
- Input Capacitance: 5pF
- Maximum Junction Temperature: +150°C
Buy the Maxim MAX5711 – Reliable 10-Bit DAC for Industrial Applications
Order the Maxim MAX5711 online today and enhance your industrial automation, process control, or portable device with this low-power, high-accuracy DAC. Its compact SOT23 package, rail-to-rail output, and fast SPI-compatible interface ensure seamless integration into your existing systems. With features like power-on reset and versatile power-down modes, it offers reliability and energy efficiency for demanding applications. Purchase now to benefit from quick delivery, comprehensive datasheets, and technical support aimed at optimizing your electronic designs.
Buy Maxim MAX5711 now and experience unmatched reliability and high-precision performance in your automation and control projects.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX5711AUTT?
You can click on the BUY or RFQ button to purchase MAX5711AUTT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX5711AUTT?
You can download the MAX5711AUTT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX5711AUTT?
MAXIM INTEGRATED / ANALOG DEVICES
