MAXIM INTEGRATED / ANALOG DEVICES MAX19505ETM High-Speed ADC
The MAX19505 is a dual-channel, 8-bit, 65Msps analog-to-digital converter (ADC) optimized for high-speed RF, IF, and baseband applications. It features a wide input common-mode range of 0.4V to 1.4V, excellent dynamic performance with 49.8dBFS SNR at 70MHz, and low power consumption at 43mW per channel. The device operates from a 1.8V supply, supports programmable registers via SPI, and offers flexible digital output configurations. Its small 7mm x 7mm QFN package is suitable for space-constrained industrial, communications, and medical imaging applications, with an extended -40°C to +85°C temperature range.
MAXIM INTEGRATED / ANALOG DEVICES MAX19505ETM High-Speed ADC Specifications:
- Resolution: 8 Bits
- Sample Rate: 65Msps
- Input Common-Mode Voltage Range: 0.4V to 1.4V
- Input Voltage: Differential, Single-ended
- Input Resistance: > 100 kΩ
- Differential Input Voltage: 18 Vp-p
- Input Current: 35 nA per input
- Noise Floor: < -35dBFS at 70MHz
- SNR: 49.8dBFS at 70MHz, 49.8dBFS at 3MHz
- SFDR: 69dBc at 70MHz, 77dBc at 3MHz
- Power Consumption: 43mW per channel at 65Msps
- Supply Voltage: 1.8V (analog), 1.8V-3.5V (digital)
- Package: 7mm x 7mm 48-pin thin QFN
- Operating Temperature Range: -40°C to +85°C
- Control Interface: SPI and parallel (programmable)
- Reference Input/Output: External or internal, adjustable via register
- Dimensions: 7mm x 7mm x 0.8mm
- Features: Programmable registers, multiple output formats, self-sensing voltage regulator

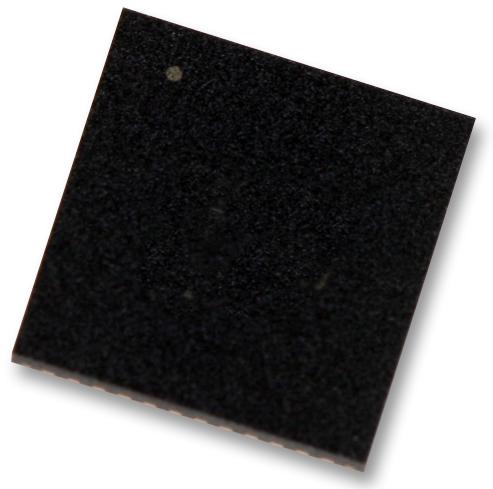

Buy the Maxim Series MAX19505 ADC: Dual 8-Bit 65Msps PartNumber
Discover the MAX19505 dual-channel ADC designed for high-frequency RF, IF, and baseband signals. With 8-bit resolution, 65Msps, low power consumption, and flexible control via SPI or parallel interface, it’s ideal for medical imaging, wireless communications, and instrumentation. Its wide input common-mode range of 0.4V to 1.4V supports DC coupling, simplifying system design. Compactly packaged in a 7mm x 7mm QFN, this ADC ensures reliability over an extended -40°C to +85°C temperature range. Enhance your system with trusted Maxim quality today.
Order your Maxim Series MAX19505 ADC today and give your projects the dependable high-speed performance they deserve.
