MAXIM INTEGRATED / ANALOG DEVICES MAX2031ETP RF Mixer
The MAX2031 is a high-linearity passive mixer suitable for RF applications between 650MHz and 1000MHz, supporting GSM, CDMA2000, WiMAX, and other wireless systems. It offers +36dBm IIP3, 7dB noise figure, and low conversion loss. Integrated baluns and LO buffer simplify design. Designed for high-side LO injection architectures, it operates over -40°C to +85°C, with excellent linearity, high LO drive capability, and pin compatibility with similar mixers in the MAX203x family. Ideal for base stations and wireless communication systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX2031ETP RF Mixer Specifications:
- RF Frequency Range: 650MHz to 1000MHz
- LO Frequency Range: 650MHz to 1250MHz
- Conversion Loss: 7dB
- Input IP3: +36dBm
- Noise Figure: 7dB
- LO Drive Level: -3dBm to +3dBm
- Supply Voltage: 4.75V to 5.25V
- Supply Current: 85mA to 100mA
- Dimensions: 20-pin thin QFN (5mm x 5mm)
- Operation Temperature Range: -40°C to +85°C
- Built-in LO buffer and SPDT switch
- Impedance Matching: 50Ω
- Integrated baluns for single-ended RF and LO inputs
- Switching Time: approximately 50ns
- EXPOSURE PAD: connected to GND for thermal conduction
- Designed for high-side LO injection architectures
- Output Return Loss: better than 15dB
- Supports cellular and broadband wireless systems

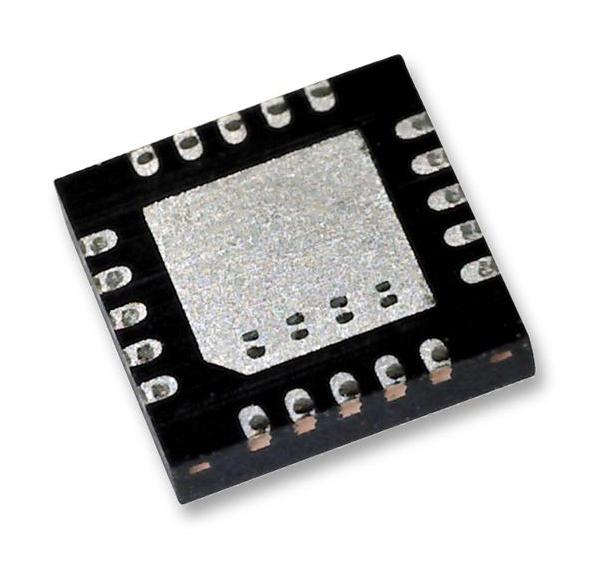

Buy the Maxim Series MAX2031 RF Mixer: 650MHz to 1000MHz: MAX2031ETP
Purchase the Maxim MAX2031ETP now for superior RF mixing performance in wireless communication systems. This compact, pin-compatible mixer provides high linearity, low noise figure, and integrated baluns, making it ideal for base stations and consumer electronics. Its robust design supports a broad RF range of 650MHz to 1000MHz and a LO range up to 1250MHz. With excellent thermal and electrical characteristics, order online today and ensure reliable, professional-grade performance for your next project.
Order your Maxim Series MAX2031ETP high-linearity RF mixer today and enhance your wireless projects with dependable performance and integrated matching.
